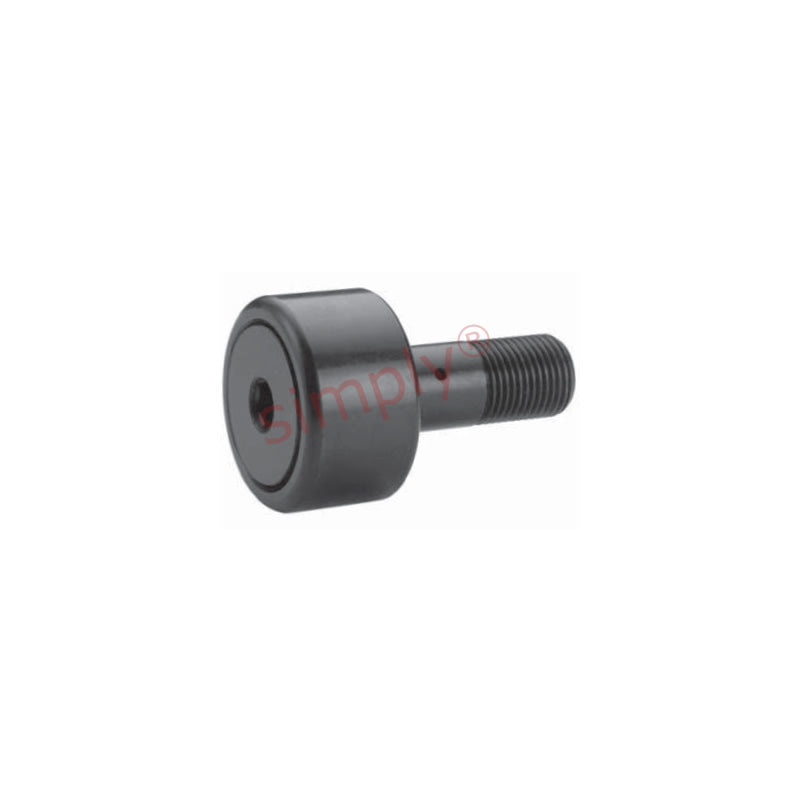

Major Brand CNB52B Hex Head Cylindrical Cam Follower 1-5/8 inch Outside Diameter Allow 7-10 Days

SKU: CNB-52-B

Major Brand CNB52B Hex Head Cylindrical Cam Follower 1-5/8 inch Outside Diameter Allow 7-10 Days

CHF 59.00 ex VAT
CHF 59.00
ex VAT
Equivalent to: CF-1-5/8-B S-48-W CR-1-5/8-B CRB-26
Not in stock

Quantity Price Breaks

3 CHF 52.51
4 CHF 49.56
9 CHF 48.97
19 CHF 48.38
29 CHF 47.79
39 CHF 47.20
49 CHF 44.25
59 CHF 43.66
249 CHF 43.07
499 CHF 42.48
999 CHF 41.30
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
Major Brand CNB52B Hex Head Cylindrical Cam Follower 1-5/8 inch Outside Diameter Allow 7-10 Days
SKU: CNB-52-B

Major Brand CNB52B Hex Head Cylindrical Cam Follower 1-5/8 inch Outside Diameter Allow 7-10 Days

CHF 59.00 ex VAT
CHF 59.00
ex VAT

Description

Cam Follower with Hex Head: The outer race of this cam follower is high carbon chrome bearing steel through-hardened and ground. The studs and inner races are low carbon alloy steel carburized and induction hardened. This bearing contains a polymer type, lithium based grease containing corrosion resistant additives. This lubricant is suited to most bearing applications within a temperature range of 0 deg F to 250 deg F.
Benefits: Suitable for many cam or track roller applications with moderate loading and shock, provides ease of installing with a hex wrench.

Technical

A = 1.625 inch
B = 0.875 inch
C = 0.625 inch
D = 1.5 inch
E = 0.75 inch
Thread class 2A F = 5/8-18 UNF
G = 3/8 inch
H = 3/32 inch
J = 3/16 inch
Min boss diameter = 57/64 inch
Recommended bore = 0.625 inch
Recommended torque = 650 lbf-in
Max static capacity = 5640 lbs
Basic dynamic rating = 4840 lbs
