SKU: CNB-22-S

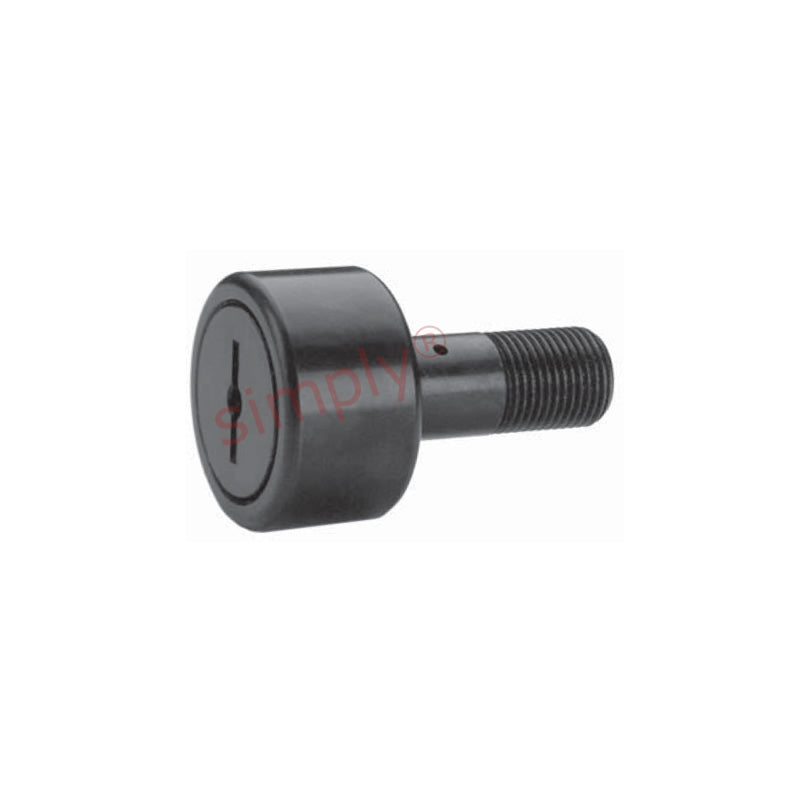

Major Brand CNB22S Sealed and Slotted Cylindrical Cam Follower 11/16 inch Outside Diameter Allow 7-10 Days
- Regular price
- CHF 36.00 ex VAT
- Sale price
- CHF 36.00
- Regular price
-
Not in stock
Quantity Price Breaks
3
CHF 32.04
4
CHF 30.24
9
CHF 29.88
19
CHF 29.52
29
CHF 29.16
39
CHF 28.80
49
CHF 27.00
59
CHF 26.64
249
CHF 26.28
499
CHF 25.92
999
CHF 25.20
SKU:
CNB-22-S
Major Brand CNB22S Sealed and Slotted Cylindrical Cam Follower 11/16 inch Outside Diameter Allow 7-10 Days
- Regular price
- CHF 36.00 ex VAT
- Sale price
- CHF 36.00
- Regular price
-
Description
|
Sealed Cam Follower with Slotted Head: The outer race of this cam follower is high carbon chrome bearing steel through-hardened and ground. The studs and inner races are low carbon alloy steel carburized and induction hardened. This bearing contains a polymer type, lithium based grease containing corrosion resistant additives. This lubricant is suited to most bearing applications within a temperature range of 0 deg F to 250 deg F. Benefits: Suitable for many cam or track roller applications with moderate loading and shock, sealed to help prevent contamination and retain lubrication. |
Technical
| A | = | 0.6875 inch |
| B | = | 0.4375 inch |
| C | = | 0.25 inch |
| D | = | 0.75 inch |
| E | = | 0.312 inch |
| Thread class 2A F | = | 1/4-28 UNF |
| J | = | 1/8 inch |
| Min boss diameter | = | 23/64 inch |
| Recommended bore | = | 0.25 inch |
| Recommended torque | = | 35 lbf-in |
| Max static capacity | = | 1215 lbs |
| Basic dynamic rating | = | 955 lbs |
