SKU: CCNBH-72-SB

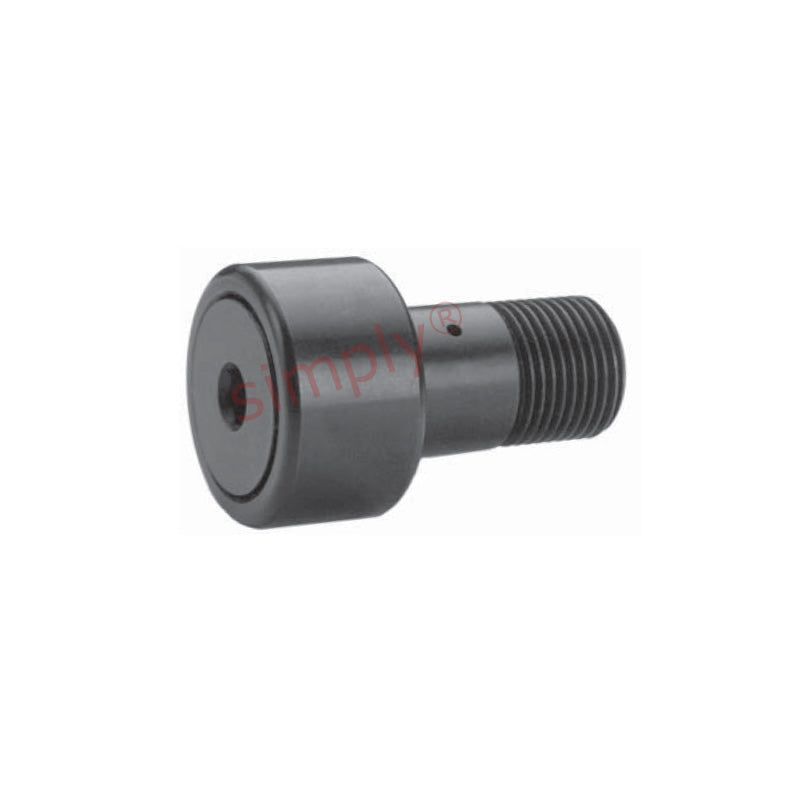

Major Brand CCNBH72SB Heavy Duty Hex Head Crowned Cam Follower 2-1/4 inch Outside Diameter Allow 7-10 Days
- Regular price
- CHF 110.00 ex VAT
- Sale price
- CHF 110.00
- Regular price
-
Not in stock
Quantity Price Breaks
3
CHF 97.90
4
CHF 92.40
9
CHF 91.30
19
CHF 90.20
29
CHF 89.10
39
CHF 88.00
49
CHF 82.50
59
CHF 81.40
249
CHF 80.30
499
CHF 79.20
999
CHF 77.00
SKU:
CCNBH-72-SB
Major Brand CCNBH72SB Heavy Duty Hex Head Crowned Cam Follower 2-1/4 inch Outside Diameter Allow 7-10 Days
- Regular price
- CHF 110.00 ex VAT
- Sale price
- CHF 110.00
- Regular price
-
Description
|
Heavy Duty Cam Follower with Hex Head and Crowned O.D: The outer race of this cam follower is high carbon chrome bearing steel through-hardened and ground. The studs and inner races are low carbon alloy steel carburized and induction hardened. This bearing contains a polymer type, lithium based grease containing corrosion resistant additives. This lubricant is suited to most bearing applications within a temperature range of 0 deg F to 250 deg F. This type of bearing is recommended wherever variations in dimensions of alignment of the tracks or cam might cause excessive angular loading. It reduces thrust on the rollers and wear, and aids reliability. Benefits: Suitable for many cam or track roller applications with moderate loading and shock, ease of installing with a hex wrench. |
Technical
| A | = | 2.25 inch |
| B | = | 1.25 inch |
| C | = | 1.125 inch |
| D | = | 2 inch |
| E | = | 1 inch |
| Thread class 2A F | = | 1-1/8-12 UNF |
| G | = | 1/2 inch |
| H | = | 1/8 inch |
| J | = | 3/16 inch |
| Min boss diameter | = | 1-13/32 inch |
| Recommended bore | = | 1.125 inch |
| Recommended torque | = | 2800 lbf-in |
| Max static capacity | = | 21140 lbs |
| Basic dynamic rating | = | 8090 lbs |
