SKU: CCNB-88-SB

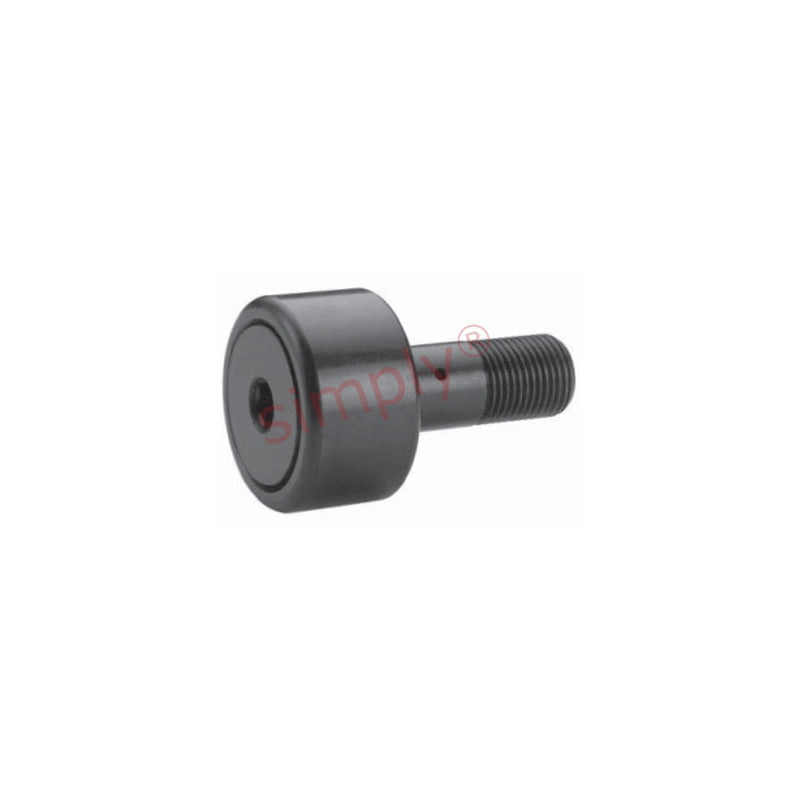

Major Brand CCNB88SB Hex Head Sealed Crowned Cam Follower with 2-3/4 inch Outside Diameter Allow 7-10 Days
- Regular price
- CHF 170.00 ex VAT
- Sale price
- CHF 170.00
- Regular price
-
Not in stock
Quantity Price Breaks
3
CHF 151.30
4
CHF 142.80
9
CHF 141.10
19
CHF 139.40
29
CHF 137.70
39
CHF 136.00
49
CHF 127.50
59
CHF 125.80
249
CHF 124.10
499
CHF 122.40
999
CHF 119.00
SKU:
CCNB-88-SB
Major Brand CCNB88SB Hex Head Sealed Crowned Cam Follower with 2-3/4 inch Outside Diameter Allow 7-10 Days
- Regular price
- CHF 170.00 ex VAT
- Sale price
- CHF 170.00
- Regular price
-
Description
|
Cam Follower with Hex Head and Crowned O.D: The outer race of this cam follower is high carbon chrome bearing steel through-hardened and ground. The studs and inner races are low carbon alloy steel carburized and induction hardened. This bearing contains a polymer type, lithium based grease containing corrosion resistant additives. This lubricant is suited to most bearing applications within a temperature range of 0 deg F to 250 deg F. This type of bearing is recommended wherever variations in dimensions of alignment of the tracks or cam might cause excessive angular loading. It reduces thrust on the rollers and wear, and aids reliability. Benefits: Suitable for many cam or track roller applications with moderate loading and shock, ease of installing with a hex wrench. |

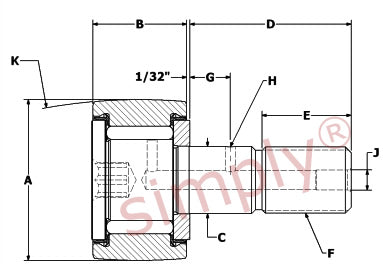

Technical
| A | = | 2.75 inch |
| B | = | 1.5 inch |
| C | = | 1 inch |
| D | = | 2.25 inch |
| E | = | 1.125 inch |
| Thread class 2A F | = | 1-14 UNS |
| G | = | 9/16 inch |
| H | = | 1/8 inch |
| J | = | 3/16 inch |
| Min boss diameter | = | 1-5/16 inch |
| Recommended bore | = | 1 inch |
| Recommended torque | = | 2250 lbf-in |
| Max static capacity | = | 16450 lbs |
| Basic dynamic rating | = | 11720 lbs |
