CC112 Major Brand Hexagon Section Double Sided V-Belt

SKU: CC.112.MB

CC112 Major Brand Hexagon Section Double Sided V-Belt

CHF 125.00 ex VAT
CHF 125.00
ex VAT
Not in stock

Quantity Price Breaks

10 CHF 111.25
19 CHF 105.00
29 CHF 103.75
39 CHF 102.50
49 CHF 101.25
74 CHF 100.00
99 CHF 93.75
199 CHF 92.50
249 CHF 91.25
499 CHF 90.00
999 CHF 87.50
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
CC112 Major Brand Hexagon Section Double Sided V-Belt
SKU: CC.112.MB

CC112 Major Brand Hexagon Section Double Sided V-Belt

CHF 125.00 ex VAT
CHF 125.00
ex VAT

Description

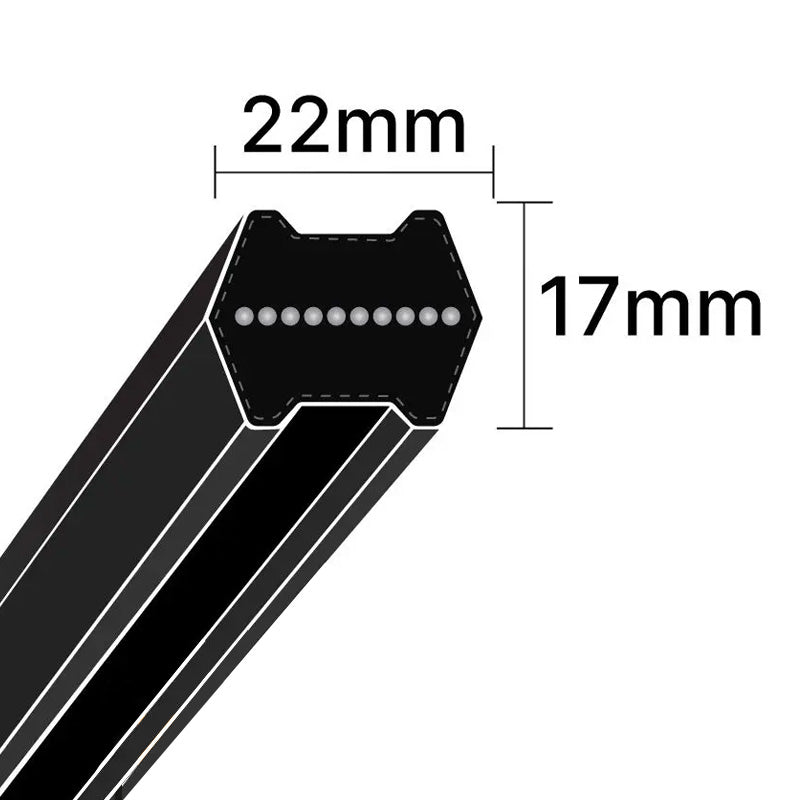

Hexagon profile V-Belts: Hex belts, also known as double V-belts, are designed for use on drives with one or more reverse bends. They usually transmit power from both sides of the belt. To meet the multiple-bend and dual-power requirements, we build Hex belts with rugged Vytacord tension members. They deliver maximum strength with minimum elongation. They also work with all the other quality materials that are a part of our Hex belts to deliver maximum performance over a long, trouble-free life. Hex belts are available in AA, BB, and CC cross sections.
Applications: Used on drives having one or more reverse bends and usually where power must be transmitted to or from the belt in both the usual and reverse positions.
Benefits: Dual-sided classical profile, High-strength Vytacord® tensile members, Engineered rubber compound-impregnated, Engineered rubber cushion and insulation, Oil, heat, ozone, and abrasion resistant envelope, Static conductive

Technical

Reference Length = 2845mm = 112 inch
Datum Length = 2920mm = 114.96 inch
