SKU: BEF3/8-20-501-DURB

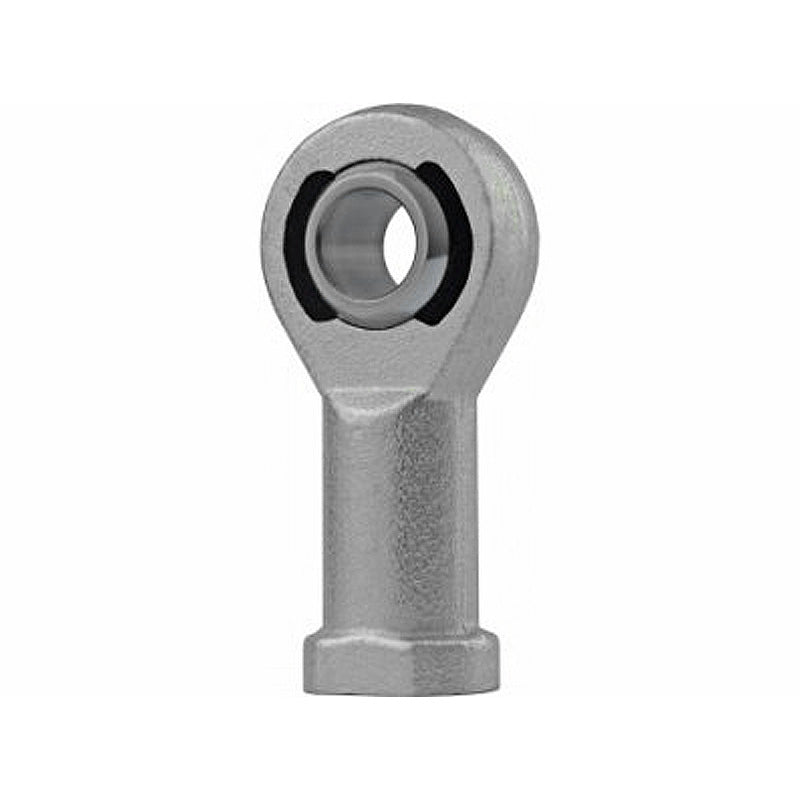

Durbal BEF3/8-20-501 Maintenance Free Right Hand Imperial Steel / PTFE Lined Female Rod End 3/8-24 UNF Thread - Allow 2-3 Days

CHF 97.00 ex VAT
CHF 97.00
ex VAT
Not in stock

Quantity Price Breaks

5+ CHF 96.03
10+ CHF 92.15
20+ CHF 90.21
50+ CHF 87.30
100+ CHF 85.36
500+ CHF 80.51
1000+ CHF 67.90
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
placeholder-svg
SKU: BEF3/8-20-501-DURB

Durbal BEF3/8-20-501 Maintenance Free Right Hand Imperial Steel / PTFE Lined Female Rod End 3/8-24 UNF Thread - Allow 2-3 Days

CHF 97.00 ex VAT
CHF 97.00
ex VAT

Description

DURBAL Heavy-Duty Female Rod Ends with Integral Spherical-Plain Bearing: Threaded female rod end consisting of a galvanised forged steel housing with a polyamide-PTFE-fibreglass-compound race and chromium-plated steel joint ball bearing. DURBAL-Glide (race) made of polyamide-PTFE-glass fibre compound, maintenance-free, encapsulates penetrating foreign particles. This fact and the greater overlay thickness compared to other sliding materials assure longer durability. Joint ball made of ball bearing steel, hardened, ground, polished and hard chromium plated, ensures reliable corrosion protection. Made of forged steel, tempered, extremely high loads resistant and protected against corrosion by galvanisation. Connection dimensions in accordance with DIN ISO 8139 for pneumatic cylinders. Temperature range: -30 deg C to +60 deg C.
Benefits: Radial clearance 0 – 10 µm, Suitable for use with impact loads, For use with small swivelling movements and at low speeds, Free from non-ferrous metals.
