SKU: BB-625-B180-10-ES

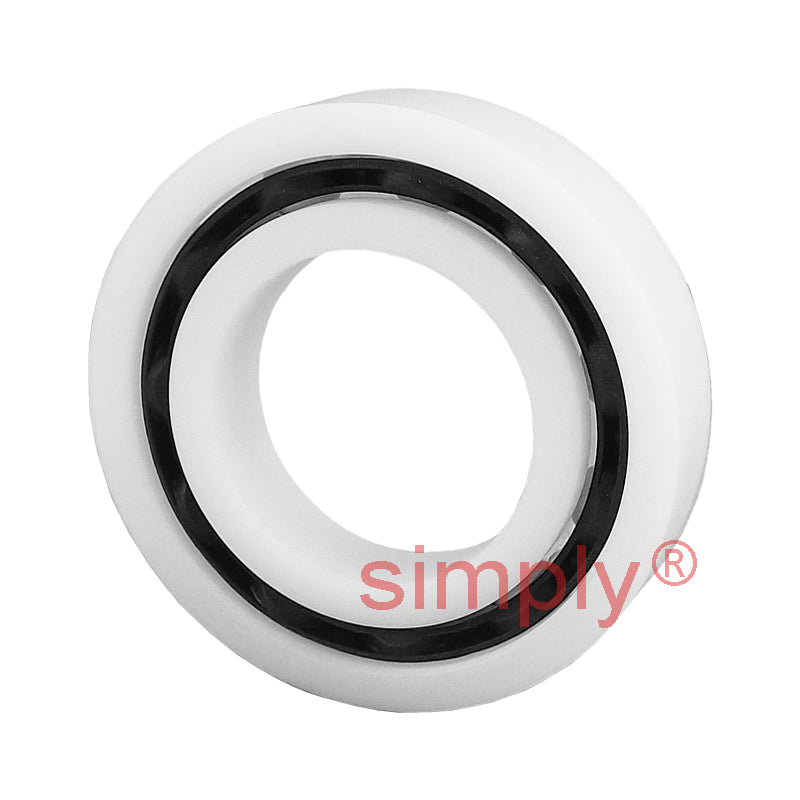

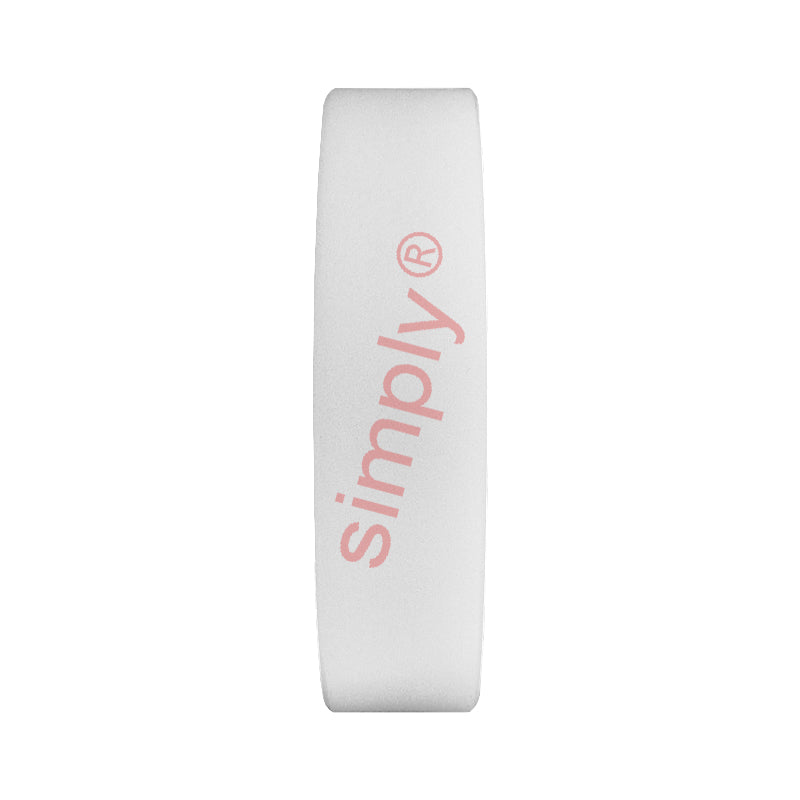

xiros xirodur BB625B18010ES Open Type Radial Groove Ball Bearing with PA Cage and Stainless Steel Balls 5x16x5mm
- Regular price
- CHF 8.00 ex VAT
- Sale price
- CHF 8.00
- Regular price
-
In stock
Quantity Price Breaks
5
CHF 7.12
9
CHF 6.72
29
CHF 6.64
49
CHF 6.56
99
CHF 6.48
199
CHF 6.40
299
CHF 6.00
399
CHF 5.92
499
CHF 5.84
749
CHF 5.76
999
CHF 5.60
SKU:
BB-625-B180-10-ES
xiros xirodur BB625B18010ES Open Type Radial Groove Ball Bearing with PA Cage and Stainless Steel Balls 5x16x5mm
- Regular price
- CHF 8.00 ex VAT
- Sale price
- CHF 8.00
- Regular price
-
Description
|
IGUS xiros® xirodur® B180 Polymer Ball Bearings: These open type radial deep groove ball bearings consist of polymer cages and stainless steel balls. They are for use with temperatures up to +80 deg C. The specially developed material xirodur® B180 provides significantly longer life times at a lower cost. These bearings are ideal for applications that require lubricant-free ball bearings and maintenance-free dry operation. They are also suitable for applications which require corrosion resistance, non-magnetic ball bearings or a light weight bearing. Benefits: Lubrication- and maintenance-free, washable, corrosion-resistant, electrically insulating. |
Technical
| d1 | = | 5mm |
| d2 | = | 16mm |
| b1 | = | 5mm |
| Max static load capacity | = | 75 N |
| Static load capacity | = | 40 N |
| Dynamic load capacity | = | 58 N |
| Max speed | = | 3100 rpm |
| Race | = | B180 |
| Cage | = | PA |
| Ball material | = | Stainless Steel |
