Major Branded B95 Imperial Drawn Cup Open End Type Full Complement Needle Roller Bearing 9/16x3/4x5/16 inch

SKU: B-95

Major Branded B95 Imperial Drawn Cup Open End Type Full Complement Needle Roller Bearing 9/16x3/4x5/16 inch

CHF 13.00 ex VAT
CHF 13.00
ex VAT
In stock

Quantity Price Breaks

5 CHF 11.57
9 CHF 10.92
19 CHF 10.79
29 CHF 10.66
49 CHF 10.53
74 CHF 10.40
99 CHF 9.75
199 CHF 9.62
249 CHF 9.49
499 CHF 9.36
999 CHF 9.10
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
Major Branded B95 Imperial Drawn Cup Open End Type Full Complement Needle Roller Bearing 9/16x3/4x5/16 inch
SKU: B-95

Major Branded B95 Imperial Drawn Cup Open End Type Full Complement Needle Roller Bearing 9/16x3/4x5/16 inch

CHF 13.00 ex VAT
CHF 13.00
ex VAT

Description

Full Complement Needle Roller Bearings: Of similar construction to the common HK and TA series needle roller bearings but having no cage and twice the number of rollers occupying the same space to permit greater load carrying capacity. Often referred to as crowded roller construction.
Benefits: Compact space saving design, High load capacity.

Technical

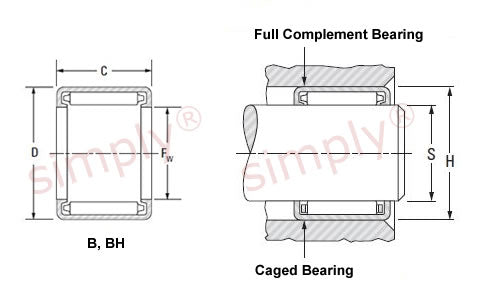

Inside Diameter = 14.29mm = 0.5625 inch
Outside Diameter = 19.05mm = 0.75 inch
Width = 7.93mm = 0.312 inch
Dynamic load C = 5.74 kN
Static load Co = 8.32 kN
S max = 14.288mm = 0.5625 inch
S min = 14.275mm = 0.562 inch
H max = 19.063mm = 0.7505 inch
H min = 19.037mm = 0.7495 inch
