SKU: AXK75100-MB-AS75100-MB
AXK75100 Major Branded Needle Roller Cage with 2 AS75100 Washers 75x100x6mm
- Regular price
- CHF 34.00 ex VAT
- Sale price
- CHF 34.00
- Regular price
-
In stock
Quantity Price Breaks
10+
CHF 30.26
19+
CHF 28.56
29+
CHF 28.22
39+
CHF 27.88
49+
CHF 27.54
74+
CHF 27.20
99+
CHF 25.50
199+
CHF 25.16
249+
CHF 24.82
499+
CHF 24.48
999+
CHF 23.80
SKU:
AXK75100-MB-AS75100-MB
AXK75100 Major Branded Needle Roller Cage with 2 AS75100 Washers 75x100x6mm
- Regular price
- CHF 34.00 ex VAT
- Sale price
- CHF 34.00
- Regular price
-
Description
|
AXK Series Needle Roller Thrust Bearings Complete: Needle roller and cage thrust assemblies complete with 2 AS series washers are a low profile high load thrust bearing assembly, they are made up of a uniform cage which reliably guides a large quantity of needle rollers, the rollers are slightly relieved towards their outer edge to enable uniform load distribution and prevents any edge damage occurrence. Benefits: Cost effective thrust solution, wide range, low profile, high load bearing |
Technical

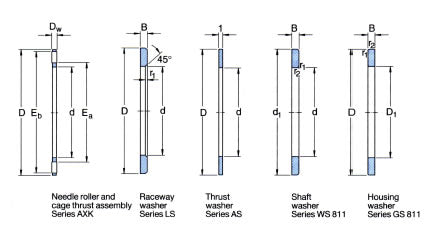

| d | = | 75mm |
| D | = | 100mm |
| Dw | = | 6mm total (2 washers at 1mm each) |
| Ea | = | 79mm |
| Eb | = | 98mm |
| Dynamic load | = | 50000 N |
| Static load | = | 265000 N |
| Fatigue load limit Pu | = | 32000 N |
| Speed in grease | = | 1100 rpm |
| Speed in oil | = | 1600 rpm |
| Weight (assembly) | = | 61 g |
| d1 | = | 100mm |
| D | = | 100mm |
| D1 | = | 77mm |
| B | = | 5.75mm |
