SKU: AXK140180-MB

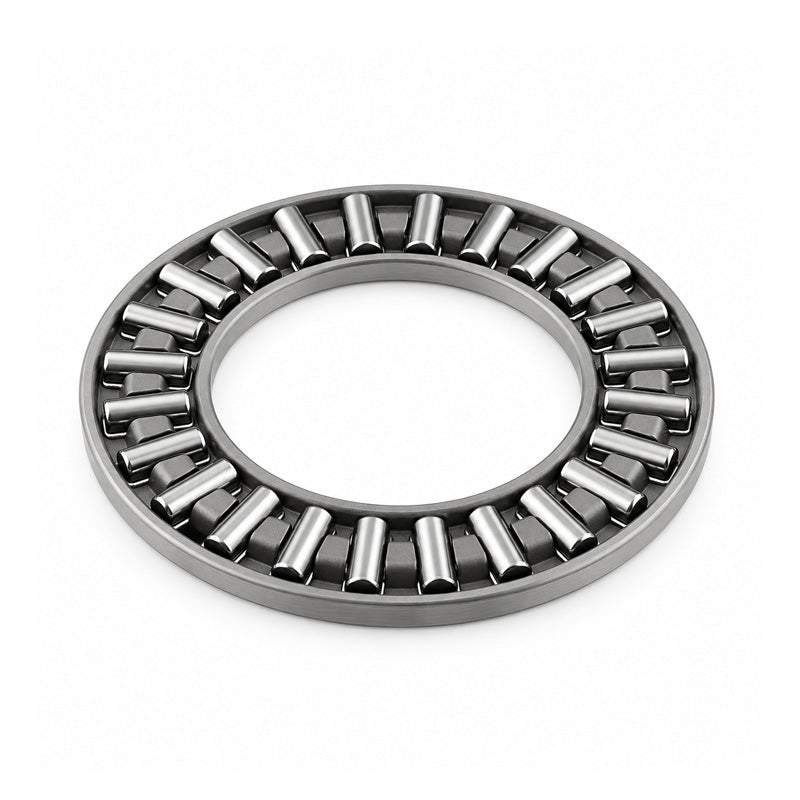

AXK140180 Major Branded Needle Roller Cage 140x180x5mm
- Regular price
- CHF 139.00 ex VAT
- Sale price
- CHF 139.00
- Regular price
-
In stock
Quantity Price Breaks
10
CHF 123.71
19
CHF 116.76
29
CHF 115.37
39
CHF 113.98
49
CHF 112.59
74
CHF 111.20
99
CHF 104.25
199
CHF 102.86
249
CHF 101.47
499
CHF 100.08
999
CHF 97.30
SKU:
AXK140180-MB
AXK140180 Major Branded Needle Roller Cage 140x180x5mm
- Regular price
- CHF 139.00 ex VAT
- Sale price
- CHF 139.00
- Regular price
-
Description
|
AXK Series Needle Roller thrust Bearings: Needle roller and cage thrust assemblies are a low profile high load thrust bearing assembly and can be used with either the AS, LS or GS series thrust washers which are supplied separately, they are made up of a uniform cage which reliably guides a large quantity of needle rollers, the rollers are slightly relieved towards their outer edge to enable uniform load distribution and prevents any edge damage occurrence. Benefits: Cost effective thrust solution, wide range, low profile, high load bearing |
Technical
| d | = | 140mm |
| D | = | 180mm |
| Dw | = | 5mm |
| Ea | = | 146mm |
| Eb | = | 177mm |
| Dynamic load | = | 116000 N |
| Static load | = | 900000 N |
| Fatigue load limit Pu | = | 98600 N |
| Speed in grease | = | 670 rpm |
| Speed in oil | = | 900 rpm |
| Weight (assembly) | = | 220 g |
| d1 | = | 178mm |
| D | = | 180mm |
| D1 | = | 142mm |
| B | = | 9.5mm |
