SKU: AHX3126-MB

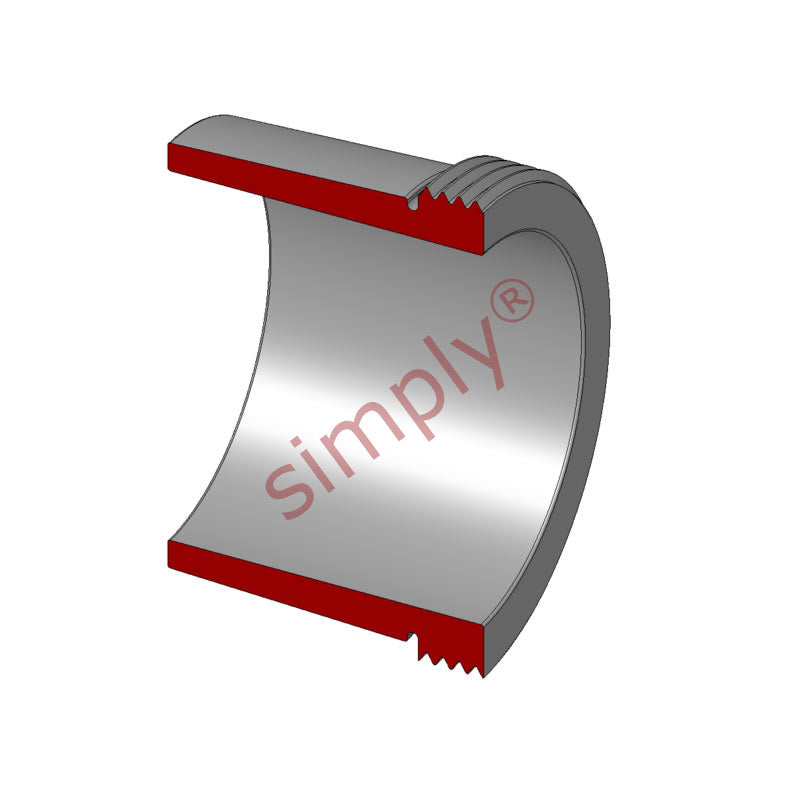

Major Branded AHX3126 Withdrawal Sleeve for 125mm shaft
- Regular price
- CHF 214.00 ex VAT
- Sale price
- CHF 214.00
- Regular price
-
Not in stock
Quantity Price Breaks
10
CHF 190.46
19
CHF 179.76
29
CHF 177.62
39
CHF 175.48
49
CHF 173.34
74
CHF 171.20
99
CHF 160.50
199
CHF 158.36
249
CHF 156.22
499
CHF 154.08
999
CHF 149.80
SKU:
AHX3126-MB
Major Branded AHX3126 Withdrawal Sleeve for 125mm shaft
- Regular price
- CHF 214.00 ex VAT
- Sale price
- CHF 214.00
- Regular price
-
Description
|
Withdrawal Sleeves: Can be used to mount bearings with a tapered bore onto a cylindrical seating. They can be used on plain shafts allowing the bearing to be positioned as required and locked into place or on stepped shafts with a seating ring to set the bearing off a shoulder before locking it into position. Differing from adaptor sleeves, they are pushed into the bearing by a locknut on the threaded shaft, they then permit a larger locknut to be used to withdraw the sleeve from within the bearing for ease of dismantling Benefits: Re-useable, adjustable, positive location, easy to dismount |
Technical
| --- | = | Dimensions |
| d1 | = | 125mm |
| d | = | 130mm |
| B1 | = | 78mm |
| B2 | = | 82mm |
| G | = | Thread 140x2mm |
| G1 | = | 12mm |
| Weight | = | 1.1 kg |
| --- | = | Assembly Parts |
| Sleeve | = | AHX3126 |
| Nut | = | KM28 |
| Hydraulic nut | = | HMV28E |
| --- | = | Matching Spherical Roller Bearings |
| Bearing No. | = | < |
| a href=advanced_search_result.php?sort=2a& | = | search_in_description=1& |
| keywords=23126K+taper> | = | 23126K< |
| /a> | = | |
| Bearing No. | = | < |
| a href=advanced_search_result.php?sort=2a& | = | search_in_description=1& |
| keywords=22226K+taper> | = | 22226K< |
| /a> | = | |
| --- | = | Matching Carb Toroidal Bearings |
| Bearing No. | = | < |
| a href=advanced_search_result.php?sort=2a& | = | search_in_description=1& |
| keywords=C2226K+taper> | = | C2226K< |
| /a> | = |
