SKU: AH3240-MB

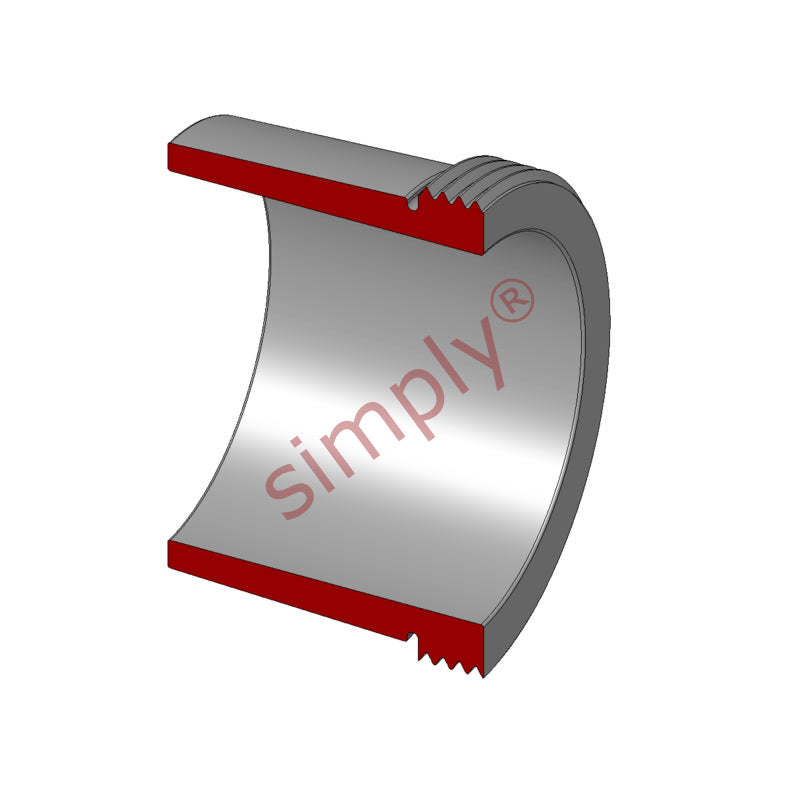

Major Branded AH3240 Withdrawal Sleeve for 190mm shaft
- Regular price
- CHF 770.00 ex VAT
- Sale price
- CHF 770.00
- Regular price
-
Not in stock
Quantity Price Breaks
10
CHF 685.30
19
CHF 646.80
29
CHF 639.10
39
CHF 631.40
49
CHF 623.70
74
CHF 616.00
99
CHF 577.50
199
CHF 569.80
249
CHF 562.10
499
CHF 554.40
999
CHF 539.00
SKU:
AH3240-MB
Major Branded AH3240 Withdrawal Sleeve for 190mm shaft
- Regular price
- CHF 770.00 ex VAT
- Sale price
- CHF 770.00
- Regular price
-
Description
|
Withdrawal Sleeves: Can be used to mount bearings with a tapered bore onto a cylindrical seating. They can be used on plain shafts allowing the bearing to be positioned as required and locked into place or on stepped shafts with a seating ring to set the bearing off a shoulder before locking it into position. Differing from adaptor sleeves, they are pushed into the bearing by a locknut on the threaded shaft, they then permit a larger locknut to be used to withdraw the sleeve from within the bearing for ease of dismantling Benefits: Re-useable, adjustable, positive location, easy to dismount |
Technical
| --- | = | Dimensions |
| d1 | = | 190mm |
| d | = | 200mm |
| B1 | = | 153mm |
| B2 | = | 160mm |
| G | = | Thread 220x4mm |
| G1 | = | 25mm |
| Weight | = | 6.6 kg |
| --- | = | Assembly Parts |
| Sleeve | = | AH3240 |
| Nut | = | HM3044 |
| Hydraulic nut | = | HMV44E |
| --- | = | Matching Spherical Roller Bearings |
| Bearing No. | = | < |
| a href=advanced_search_result.php?sort=2a& | = | search_in_description=1& |
| keywords=23240K+taper> | = | 23240K< |
| /a> | = |
