SKU: AH24038-MB

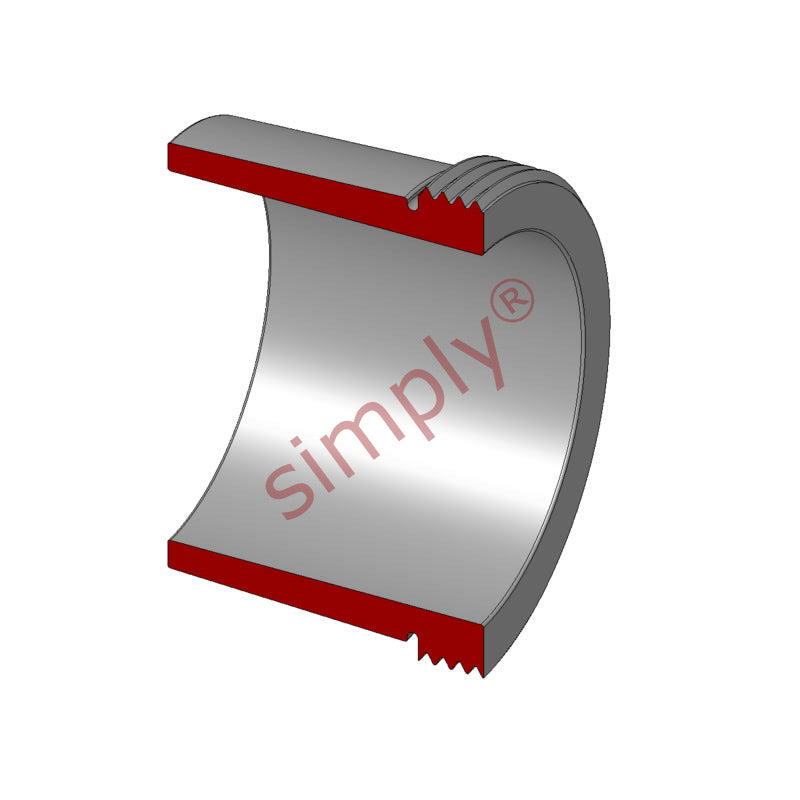

Major Branded AH24038 Withdrawal Sleeve for 180mm shaft
- Regular price
- CHF 725.00 ex VAT
- Sale price
- CHF 725.00
- Regular price
-
Not in stock
Quantity Price Breaks
10
CHF 645.25
19
CHF 609.00
29
CHF 601.75
39
CHF 594.50
49
CHF 587.25
74
CHF 580.00
99
CHF 543.75
199
CHF 536.50
249
CHF 529.25
499
CHF 522.00
999
CHF 507.50
SKU:
AH24038-MB
Major Branded AH24038 Withdrawal Sleeve for 180mm shaft
- Regular price
- CHF 725.00 ex VAT
- Sale price
- CHF 725.00
- Regular price
-
Description
|
Withdrawal Sleeves: Can be used to mount bearings with a tapered bore onto a cylindrical seating. They can be used on plain shafts allowing the bearing to be positioned as required and locked into place or on stepped shafts with a seating ring to set the bearing off a shoulder before locking it into position. Differing from adaptor sleeves, they are pushed into the bearing by a locknut on the threaded shaft, they then permit a larger locknut to be used to withdraw the sleeve from within the bearing for ease of dismantling Benefits: Re-useable, adjustable, positive location, easy to dismount |
Technical
| --- | = | Dimensions |
| d1 | = | 180mm |
| d | = | 190mm |
| B1 | = | 118mm |
| B2 | = | 131mm |
| G | = | Thread 200x3mm |
| G1 | = | 18mm |
| Weight | = | 3.55 kg |
| --- | = | Assembly Parts |
| Sleeve | = | AH24038 |
| Nut | = | KM40 |
| Hydraulic nut | = | HMV40E |
| --- | = | Matching Spherical Roller Bearings |
| Bearing No. | = | < |
| a href=advanced_search_result.php?sort=2a& | = | search_in_description=1& |
| keywords=24038K+taper> | = | 24038K< |
| /a> | = | |
| --- | = | Matching Carb Toroidal Bearings |
| Bearing No. | = | < |
| a href=advanced_search_result.php?sort=2a& | = | search_in_description=1& |
| keywords=C4038K30V+taper> | = | C4038K30V< |
| /a> | = |
