SKU: AH24028-MB

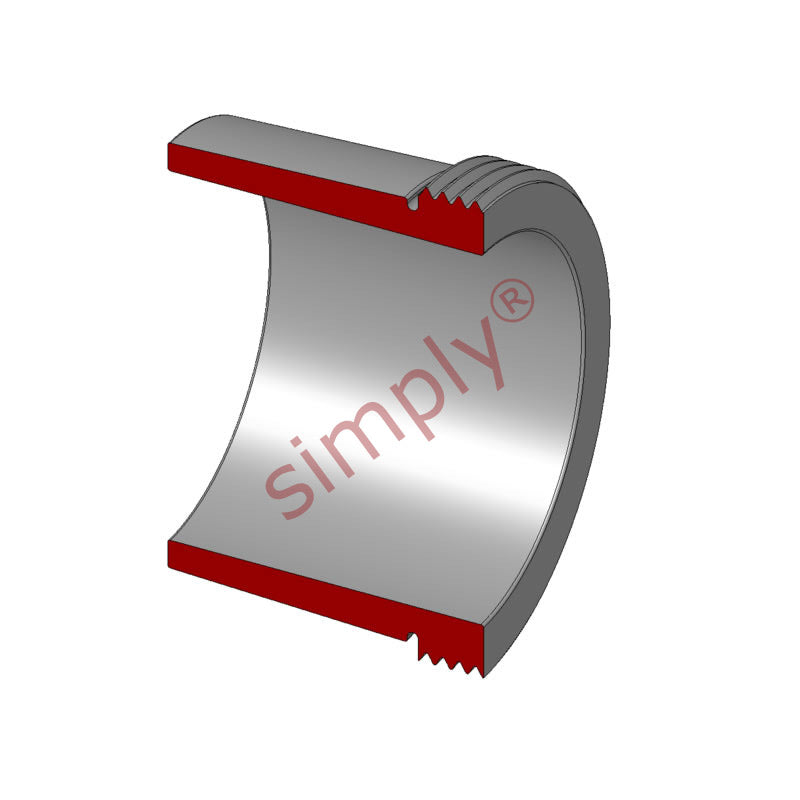

Major Branded AH24028 Withdrawal Sleeve for 135mm shaft
- Regular price
- CHF 307.00 ex VAT
- Sale price
- CHF 307.00
- Regular price
-
Not in stock
Quantity Price Breaks
10
CHF 273.23
19
CHF 257.88
29
CHF 254.81
39
CHF 251.74
49
CHF 248.67
74
CHF 245.60
99
CHF 230.25
199
CHF 227.18
249
CHF 224.11
499
CHF 221.04
999
CHF 214.90
SKU:
AH24028-MB
Major Branded AH24028 Withdrawal Sleeve for 135mm shaft
- Regular price
- CHF 307.00 ex VAT
- Sale price
- CHF 307.00
- Regular price
-
Description
|
Withdrawal Sleeves: Can be used to mount bearings with a tapered bore onto a cylindrical seating. They can be used on plain shafts allowing the bearing to be positioned as required and locked into place or on stepped shafts with a seating ring to set the bearing off a shoulder before locking it into position. Differing from adaptor sleeves, they are pushed into the bearing by a locknut on the threaded shaft, they then permit a larger locknut to be used to withdraw the sleeve from within the bearing for ease of dismantling Benefits: Re-useable, adjustable, positive location, easy to dismount |
Technical
| --- | = | Dimensions |
| d1 | = | 135mm |
| d | = | 140mm |
| B1 | = | 83mm |
| B2 | = | 93mm |
| G | = | Thread 145x2mm |
| G1 | = | 14mm |
| Weight | = | 0.95 kg |
| --- | = | Assembly Parts |
| Sleeve | = | AH24028 |
| Nut | = | KM29 |
| Hydraulic nut | = | HMV29E |
| --- | = | Matching Spherical Roller Bearings |
| Bearing No. | = | < |
| a href=advanced_search_result.php?sort=2a& | = | search_in_description=1& |
| keywords=24028K+taper> | = | 24028K< |
| /a> | = | |
| Bearing No. | = | < |
| a href=advanced_search_result.php?sort=2a& | = | search_in_description=1& |
| keywords=C4028K+taper> | = | C4028K< |
| /a> | = |
