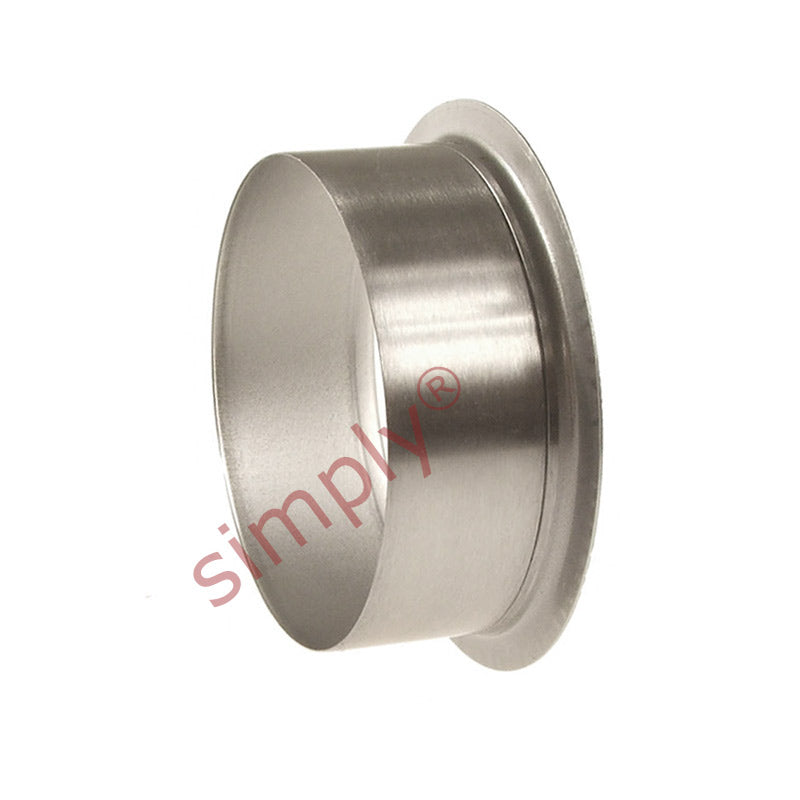

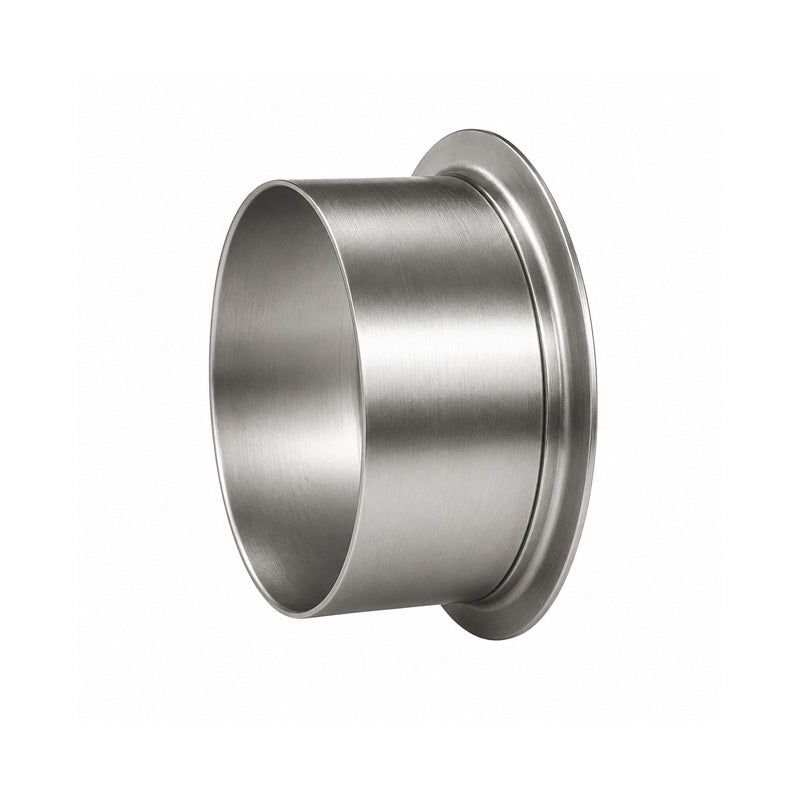

99215 Hardened Stainless Sturdi Sleeve for Shafts 2.162-2.168 inch

SKU: 99215

99215 Hardened Stainless Sturdi Sleeve for Shafts 2.162-2.168 inch

CHF 20.00 ex VAT
CHF 20.00
ex VAT
In stock

Quantity Price Breaks

10 CHF 17.80
19 CHF 16.80
29 CHF 16.60
39 CHF 16.40
49 CHF 16.20
74 CHF 16.00
99 CHF 15.00
199 CHF 14.80
249 CHF 14.60
499 CHF 14.40
999 CHF 14.00
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
99215 Hardened Stainless Sturdi Sleeve for Shafts 2.162-2.168 inch
SKU: 99215

99215 Hardened Stainless Sturdi Sleeve for Shafts 2.162-2.168 inch

CHF 20.00 ex VAT
CHF 20.00
ex VAT

Description

Sturdi® Sleeve: The quickest and most sensible way to repair a worn shaft. The Sturdi® sleeve range offers the opportunity to repair seal counter faces on shafts without prior dismantling or machining of the equipment and once fitted offers superior surface and sealing characteristics often outperforming the original life span of the shaft. Speedi Sleeves are designed to repair shafts where oil seals run. The sleeve is sufficiently thin-walled (.011" or 0.28 mm) to allow the same size of seal to be used. The Sturdi® shaft repair sleeve is made of high quality stainless steel SAE 304. The surface is wear-resistant and machined without directionality to a finish of Ra = 10 to 20 micro inches or 0.25 to 0.5 µm.
Benefits: No dismantling of equipment, longer life cycle, cost effective.
Note: Sturdi® sleeves are only suitable for repairs where an oil seals needs to run, they cannot be used to repair damage where a bearing fits onto a shaft.

Technical

Nominal shaft diameter = 2.165 inch
Minimum shaft diameter = 2.162 inch
Maximum shaft diameter = 2.168 inch
Width B1 = 0.787 inch
Width B2 = 0.905 inch
Flange diameter D = 2.441 inch
Installation depth Ba = 1.250 inch
Weight = 0.085 kg
Material = SAE 304 Hardened Stainless
