SKU: 900SPB4-MB
900X4SPB 900mm Pitch Diameter SPB Section Tapered Locking Bush Type Pulley with 4 Grooves (Bush not Incl.)
- Regular price
- CHF 550.00 ex VAT
- Sale price
- CHF 550.00
- Regular price
-
Not in stock
Quantity Price Breaks
3
CHF 489.50
5
CHF 462.00
9
CHF 456.50
19
CHF 451.00
49
CHF 445.50
74
CHF 440.00
99
CHF 412.50
199
CHF 407.00
249
CHF 401.50
499
CHF 396.00
999
CHF 385.00
SKU:
900SPB4-MB
900X4SPB 900mm Pitch Diameter SPB Section Tapered Locking Bush Type Pulley with 4 Grooves (Bush not Incl.)
- Regular price
- CHF 550.00 ex VAT
- Sale price
- CHF 550.00
- Regular price
-
Description
|
SPB Section V Belt Pulleys: Manufactured from fine grain gray cast iron grade GG25 and are phosphated. Groove dimensions conform to ISO 4183 for both eccentricity of outside diameter to bore and groove side wobble tolerance. They are suitable for use with all wedge belts according to ISO 4184 and all classical V-belts according to ISO 4184. Speeds: Circumferential speeds of up to 40 m/s are permissible. All our pulleys are balanced to grade Q6.3 or better. Pulleys with a weight of 100kg and above are dynamically balanced (two planes). All pulleys with a weight less than 100kg are statically machine balanced (one plane). Suitability: Suitable for use with B section, BX Section, SPB, XPB and 5V section V-Belts Benefits: Cost effective replacement |
Technical
| Number of Grooves | = | 4 |
| Bush | = | < |
| a href=" | = | advanced_search_result.php?sort=2a& |
| search_in_description=1& | = | keywords=4040+tapered+locking+bush" |
| > | = | 4040 Click Here< |
| /a> | = | |

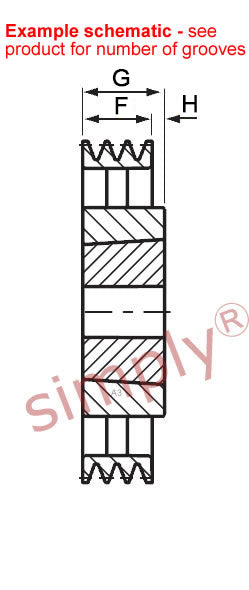

| Pitch Diameter B | = | 900mm |
| Overall Outer Diameter C | = | 907mm |
| Max Bore A | = | 100mm |
| Overall Sheave Depth F | = | 82mm |
| Bush Seat Length G | = | 102mm |
| Inner Recess Length H | = | 20mm |
