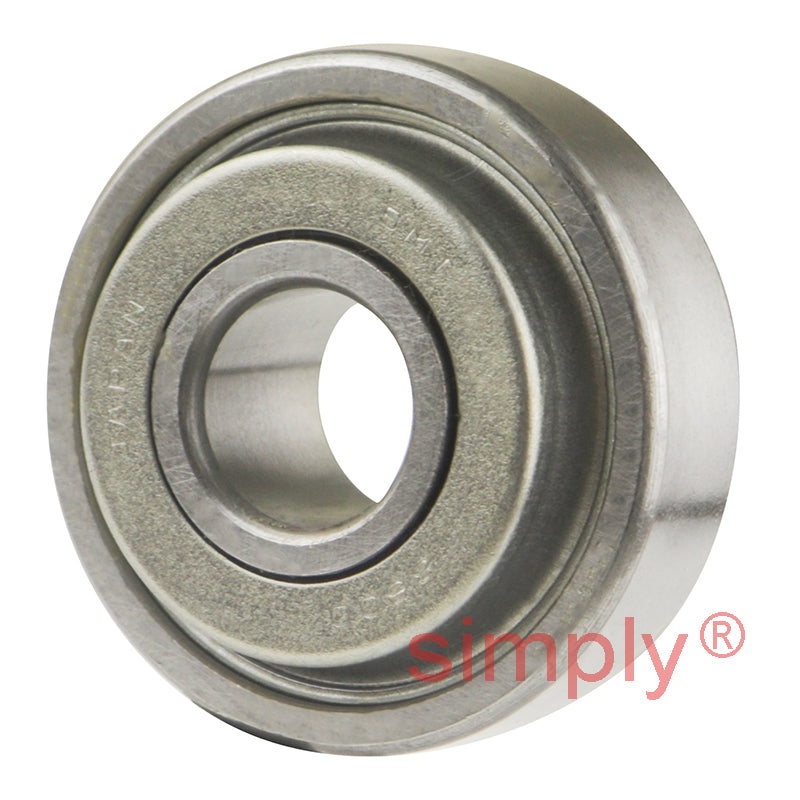

87502 Deep Groove Ball Bearing with Extended Inner Ring Felt Front Seal and Steel Back Seal 15x35x12.7mm

SKU: 87502

87502 Deep Groove Ball Bearing with Extended Inner Ring Felt Front Seal and Steel Back Seal 15x35x12.7mm

CHF 32.00 ex VAT
CHF 32.00
ex VAT
In stock

Quantity Price Breaks

10 CHF 28.48
19 CHF 26.88
29 CHF 26.56
39 CHF 26.24
49 CHF 25.92
74 CHF 25.60
99 CHF 24.00
199 CHF 23.68
249 CHF 23.36
499 CHF 23.04
999 CHF 22.40
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
87502 Deep Groove Ball Bearing with Extended Inner Ring Felt Front Seal and Steel Back Seal 15x35x12.7mm
SKU: 87502

87502 Deep Groove Ball Bearing with Extended Inner Ring Felt Front Seal and Steel Back Seal 15x35x12.7mm

CHF 32.00 ex VAT
CHF 32.00
ex VAT

Description

Specialist Shielded Ball Bearing: This bearing consist of chrome steel ball bearings and raceways with an extended inner raceway, additionally the inner raceway is recessed on the back of the bearing. Please refer to the technical tab for dimensions.
Benefits: Felt / Metal shielded on the front, extended inner race, metal shielded on the back.

Technical

B = 15mm = 0.5906 inch
D = 35mm = 1.378 inch
W = 12.7mm = 0.5 inch
Tolerance +0.0000 to minus = 0.0003 inch
Wo = 0.433 inch
Wi = 0.48 inch
r = 0.025 inch
No. of balls = 8
Ball diameter = 15/64 inch
Static load = 600 kN
Dynamic load = 354 kN
Weight = 0.043 kg
