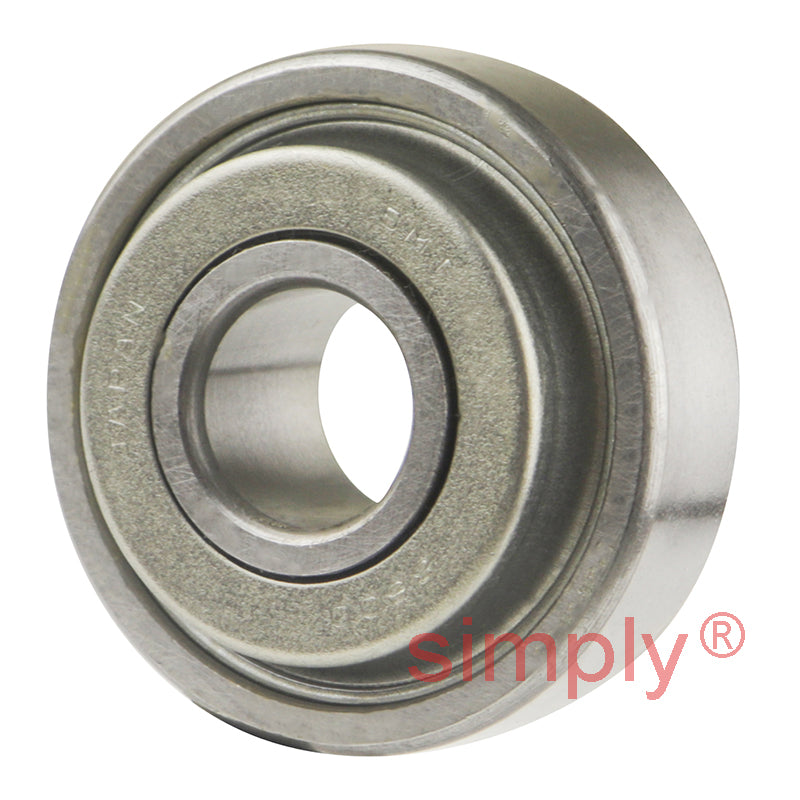

87500 Deep Groove Ball Bearing with Extended Inner Ring Felt Front Seal and Steel Back Seal 10x30x12.7mm

SKU: 87500

87500 Deep Groove Ball Bearing with Extended Inner Ring Felt Front Seal and Steel Back Seal 10x30x12.7mm

CHF 34.00 ex VAT
CHF 34.00
ex VAT
Equivalent to: SMT87500 ND87500
In stock

Quantity Price Breaks

10 CHF 30.26
19 CHF 28.56
29 CHF 28.22
39 CHF 27.88
49 CHF 27.54
74 CHF 27.20
99 CHF 25.50
199 CHF 25.16
249 CHF 24.82
499 CHF 24.48
999 CHF 23.80
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
87500 Deep Groove Ball Bearing with Extended Inner Ring Felt Front Seal and Steel Back Seal 10x30x12.7mm
SKU: 87500

87500 Deep Groove Ball Bearing with Extended Inner Ring Felt Front Seal and Steel Back Seal 10x30x12.7mm

CHF 34.00 ex VAT
CHF 34.00
ex VAT

Description

Specialist Shielded Ball Bearing: This bearing consist of chrome steel ball bearings and raceways with an extended inner raceway, additionally the inner raceway is recessed on the back of the bearing. Please refer to the technical tab for dimensions.
Benefits: Felt / Metal shielded on the front, extended inner race, metal shielded on the back.

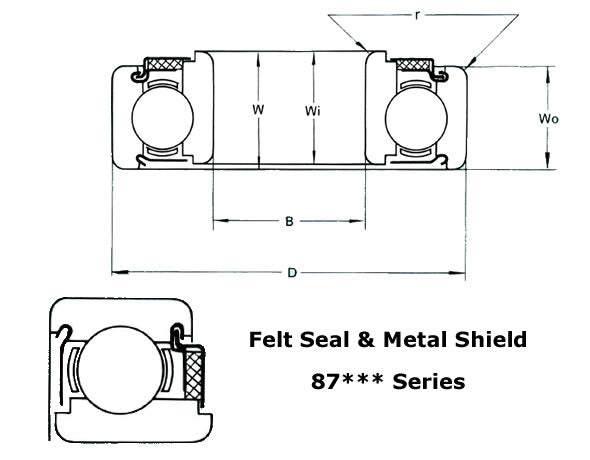

Technical

B = 10mm = 0.3937 inch
D = 30mm = 1.1811 inch
W = 12.7mm = 0.5 inch
Tolerance +0.0000 to minus = 0.0003 inch
Wo = 0.354 inch
Wi = 0.48 inch
r = 0.025 inch
No. of balls = 8
Ball diameter = 3/16 inch
Static load = 400 kN
Dynamic load = 229 kN
Weight = 0.037 kg
