SKU: 81136M.MB
Major Brand 81136M Cylindrical Roller Thrust Bearing with Brass Cage 180x225x34mm
- Regular price
- CHF 573.00 ex VAT
- Sale price
- CHF 573.00
- Regular price
-
Not in stock
Quantity Price Breaks
10
CHF 509.97
19
CHF 481.32
29
CHF 475.59
39
CHF 469.86
49
CHF 464.13
74
CHF 458.40
99
CHF 429.75
199
CHF 424.02
249
CHF 418.29
499
CHF 412.56
999
CHF 401.10
SKU:
81136M.MB
Major Brand 81136M Cylindrical Roller Thrust Bearing with Brass Cage 180x225x34mm
- Regular price
- CHF 573.00 ex VAT
- Sale price
- CHF 573.00
- Regular price
-
Description
|
Cylindrical Roller Thrust Bearings: Ideally suited to arrangements that require support for heavy radial loads. They are relatively insensitive to shock loads in operation and are reasonably stiff in operation requiring little axial space. The cylindrical surface of the rollers are slightly relieved towards the inner end to relieve / eliminate edge stresses. They are separable by design to facilitate ease of mounting and assembly. |
Technical

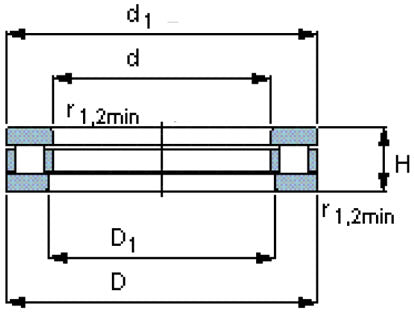

| d | = | 180mm |
| D | = | 225mm |
| H | = | 34mm |
| Dynamic load C | = | 270 kN |
| Static load Co | = | 1270 kN |
| Fatigue load limit Pu | = | 110 kN |
| Min load factor A | = | 0.13 |
| Reference speed | = | 750 rpm |
| Limiting speed | = | 1500 rpm |
| Cage reference | = | K81136M |
| Weight | = | 3.05 kg |
