SKU: 6309-ZZ/C3-EMQ-CDX

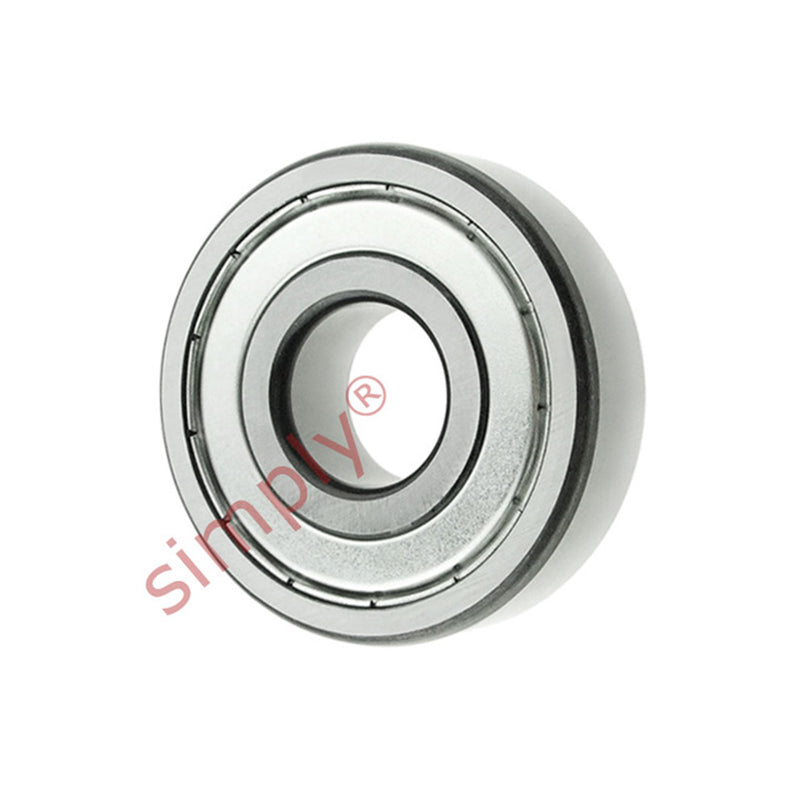

Codex 6309ZZC3 Extreme Electric Motor Quality Metal Shielded Deep Groove Ball Bearing 45x100x25mm
- Regular price
- CHF 29.00 ex VAT
- Sale price
- CHF 29.00
- Regular price
-
Quantity Price Breaks
Codex 6309ZZC3 Extreme Electric Motor Quality Metal Shielded Deep Groove Ball Bearing 45x100x25mm
- Regular price
- CHF 29.00 ex VAT
- Sale price
- CHF 29.00
- Regular price
-
Description
|
Extreme Electric Motor Quality Metal Shielded Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with metal shields inserted into the outer raceway, these fit in closely to the inner race providing protection against light mechanical damage, some protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. For use in electrical motors, tools and household appliances. |
Technical
| d | = | 45mm |
| D | = | 100mm |
| B | = | 25mm |
| Dynamic load C | = | 55.3 kn |
| Static load Co | = | 31.5 kn |
| Fatigue load limit Pu | = | 1.34 |
| Reference speed | = | 15000 rpm |
| Limiting speed | = | 7500 rpm |
| Weight | = | 0.83 kg |
| d1 | = | 62.2mm |
| D2 | = | 86.7mm |
| r1r2 min | = | 1.5mm |
| da min | = | 54mm |
| Da max | = | 91mm |
| ra max | = | 1.5mm |
| Calc factor kr | = | 0.03 |
| Calc factor Cor f0 | = | 13 |
