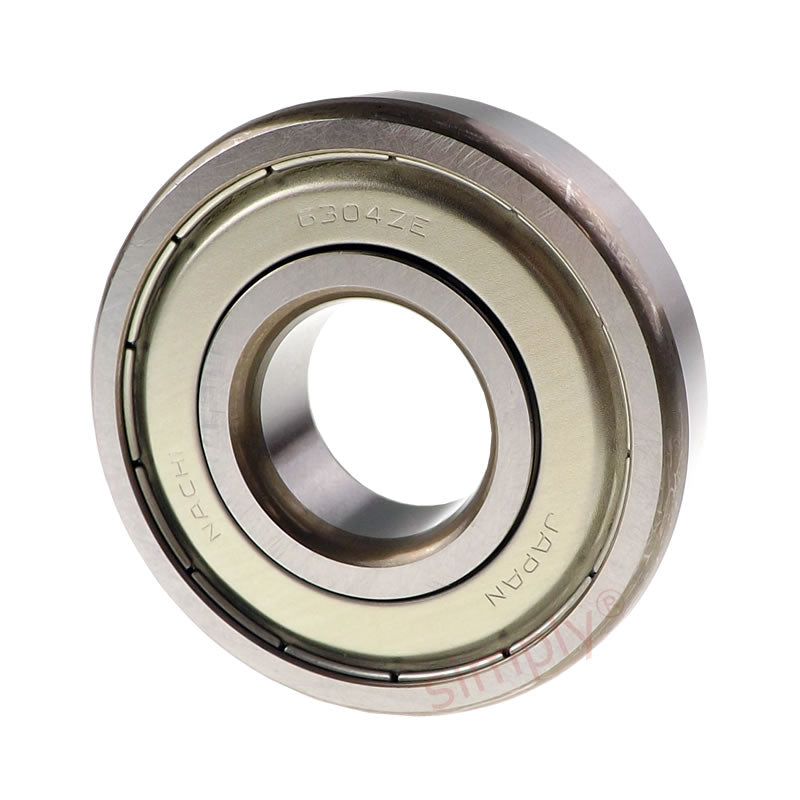

NACHI 6304ZZE Metal Shielded Deep Groove Ball Bearing 20x52x15mm

SKU: 6304-ZZE-NACHI

NACHI 6304ZZE Metal Shielded Deep Groove Ball Bearing 20x52x15mm

CHF 9.00 ex VAT
CHF 9.00
ex VAT
Equivalent to: 6304ZZ 63042Z 6304.2Z 6304KDD 6304DD 63042ZR 6304FF
In stock

Quantity Price Breaks

5 CHF 8.01
9 CHF 7.56
19 CHF 7.47
29 CHF 7.38
49 CHF 7.29
74 CHF 7.20
99 CHF 6.75
199 CHF 6.66
249 CHF 6.57
499 CHF 6.48
999 CHF 6.30
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
NACHI 6304ZZE Metal Shielded Deep Groove Ball Bearing 20x52x15mm
SKU: 6304-ZZE-NACHI

NACHI 6304ZZE Metal Shielded Deep Groove Ball Bearing 20x52x15mm

CHF 9.00 ex VAT
CHF 9.00
ex VAT

Description

NACHI Metal Shielded Deep Groove Ball Bearings: These deep groove ball bearings can sustain radial, axial or composite loads and because of simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation. This bearing has two steel shields to provide a labyrinth clearance.
Benefits: High-running accuracy and high-speed operation.

Technical

Inside Diameter d = 20mm
Outside Diameter D = 52mm
Width B = 15mm
Min radius r = 1.1mm
Dynamic load = 15900 kN
Static load = 7900 kN
Max speed = 14000 rpm
da min = 27mm
Da max = 45mm
ra max = 1.1mm
Weight = 0.144 kg
