SKU: 6303C4-MB

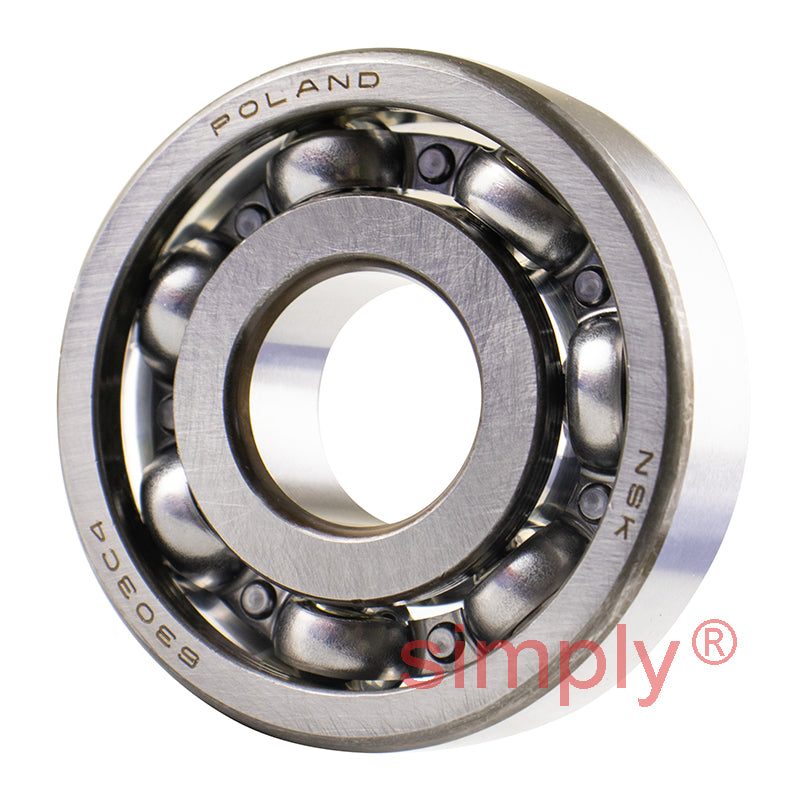

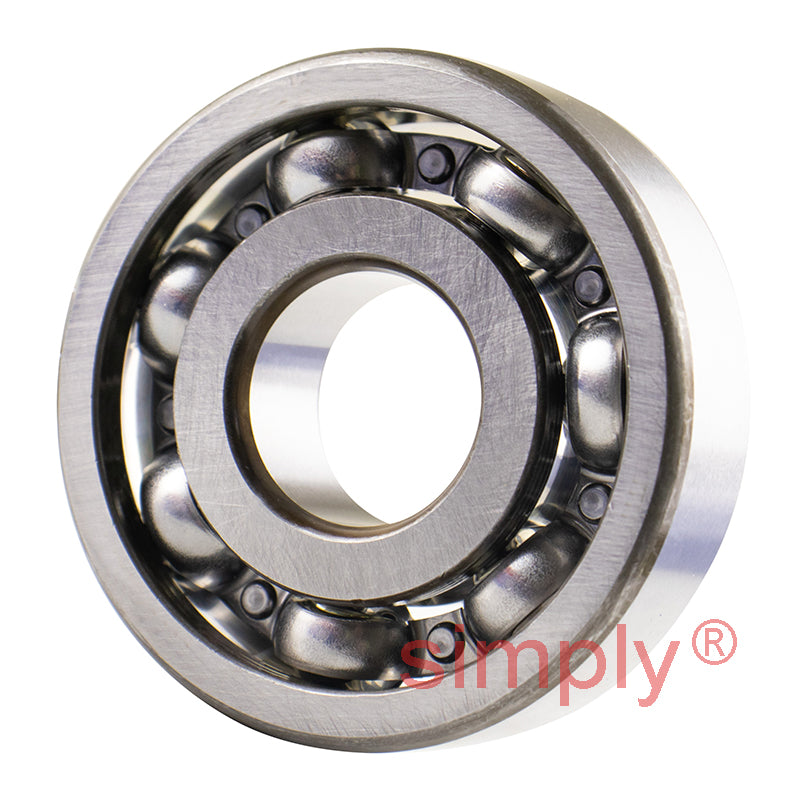

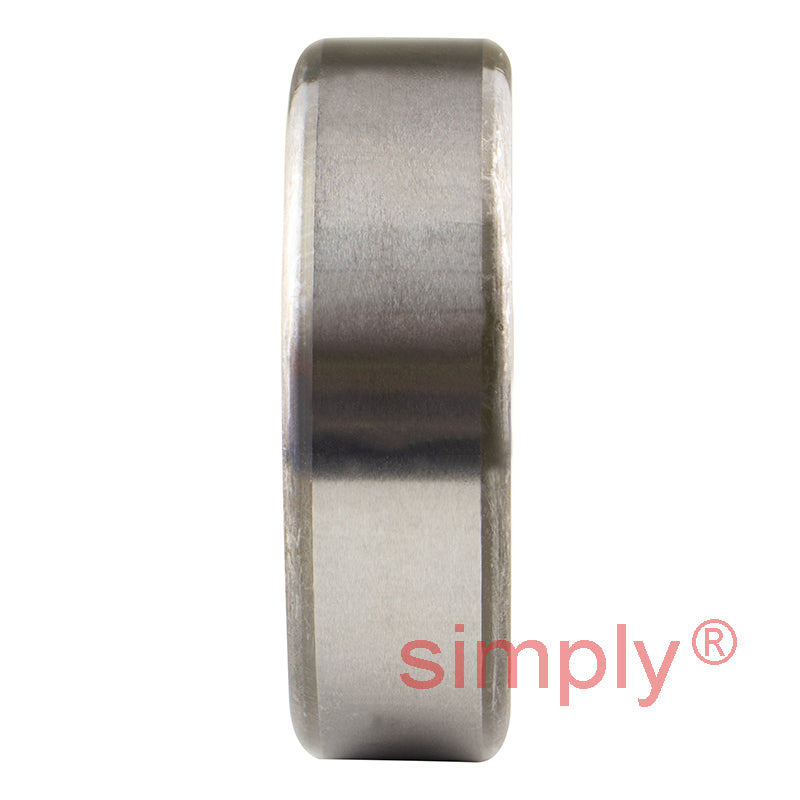

Major Branded 6303C4 Open Deep Groove Ball Bearing 17x47x14mm
- Regular price
- CHF 10.00 ex VAT
- Sale price
- CHF 10.00
- Regular price
-
In stock
Quantity Price Breaks
10
CHF 8.90
19
CHF 8.40
29
CHF 8.30
39
CHF 8.20
49
CHF 8.10
74
CHF 8.00
99
CHF 7.50
199
CHF 7.40
249
CHF 7.30
499
CHF 7.20
999
CHF 7.00
SKU:
6303C4-MB
Major Branded 6303C4 Open Deep Groove Ball Bearing 17x47x14mm
- Regular price
- CHF 10.00 ex VAT
- Sale price
- CHF 10.00
- Regular price
-
Description
|
Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available. |
Technical
| d | = | 17mm |
| D | = | 47mm |
| B | = | 14mm |
| Dynamic load C | = | 14.3 kN |
| Static load Co | = | 6.55 kN |
| Fatigue load limit Pu | = | 0.275 kN |
| Reference speed | = | 34000 rpm |
| Limiting speed | = | 22000 rpm |
| Mass | = | 0.12 kg |
| d1 | = | 26.5mm |
| D1 | = | 37.4mm |
| D2 | = | 39.7mm |
| r1r2 min | = | 1mm |
| da min | = | 22.6mm |
| Da max | = | 41.4mm |
| ra max | = | 1mm |
| Calc factor Kr | = | 0.03 |
| Calc factor | = | 12 |
