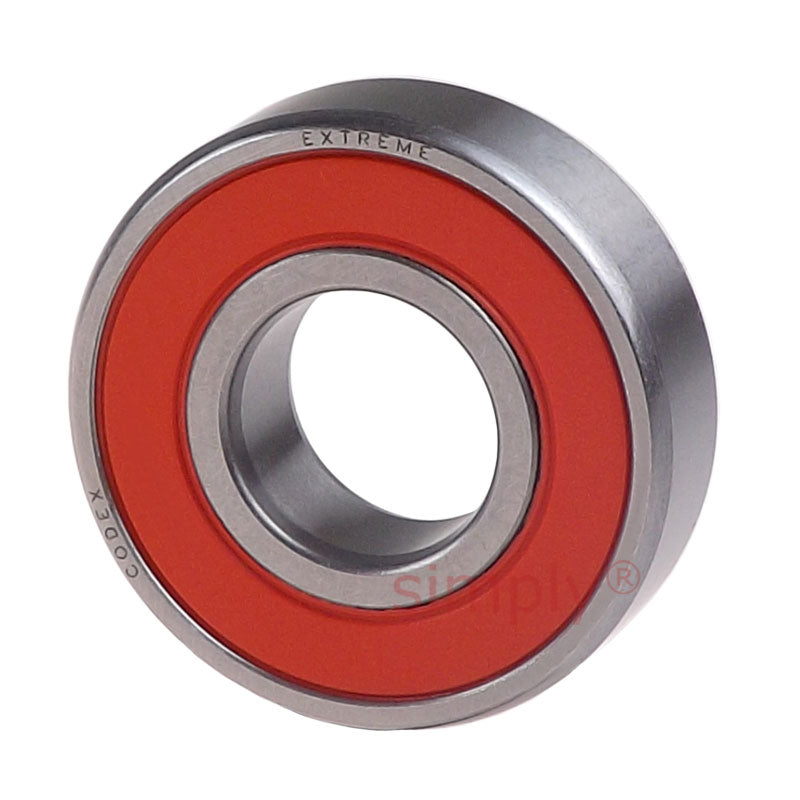

Codex 63032RSC3 Extreme Electric Motor Quality Rubber Sealed Deep Groove Ball Bearing 17x47x14mm

SKU: 6303-2RS/C3-EMQ-CDX

Codex 63032RSC3 Extreme Electric Motor Quality Rubber Sealed Deep Groove Ball Bearing 17x47x14mm

CHF 8.00 ex VAT
CHF 8.00
ex VAT
Equivalent to: 6303-2RS/C3
In stock

Quantity Price Breaks

4 CHF 7.12
10 CHF 6.72
20 CHF 6.64
30 CHF 6.56
50 CHF 6.48
75 CHF 6.40
100 CHF 6.00
200 CHF 5.92
250 CHF 5.84
500 CHF 5.76
1000 CHF 5.60
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
Codex 63032RSC3 Extreme Electric Motor Quality Rubber Sealed Deep Groove Ball Bearing 17x47x14mm
SKU: 6303-2RS/C3-EMQ-CDX

Codex 63032RSC3 Extreme Electric Motor Quality Rubber Sealed Deep Groove Ball Bearing 17x47x14mm

CHF 8.00 ex VAT
CHF 8.00
ex VAT

Description

Extreme Electric Motor Quality Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. For use in electrical motors, tools and household appliances.
Seals can be easily removed for applications that only require 1 seal.
Benefits: Protection from dust and humidity, low vibrations and noisiness.

Technical

d = 17mm
D = 47mm
B = 14mm
Dynamic load C = 14.3 kN
Static load Co = 6.55 kN
Fatigue load limit Pu = 0.275
Reference speed = 34000 rpm
Limiting speed = 11000 rpm
Weight = 0.12 kg
d2 = 24mm
D2 = 39.7mm
r1r2 = 1mm
da min = 22.6mm
da max = 23.5mm
Da max = 41.4mm
ra max = 1mm
Calc factor kr = 0.03
Calc factor Cor f0 = 12
