SKU: 6302-2Z-SKF

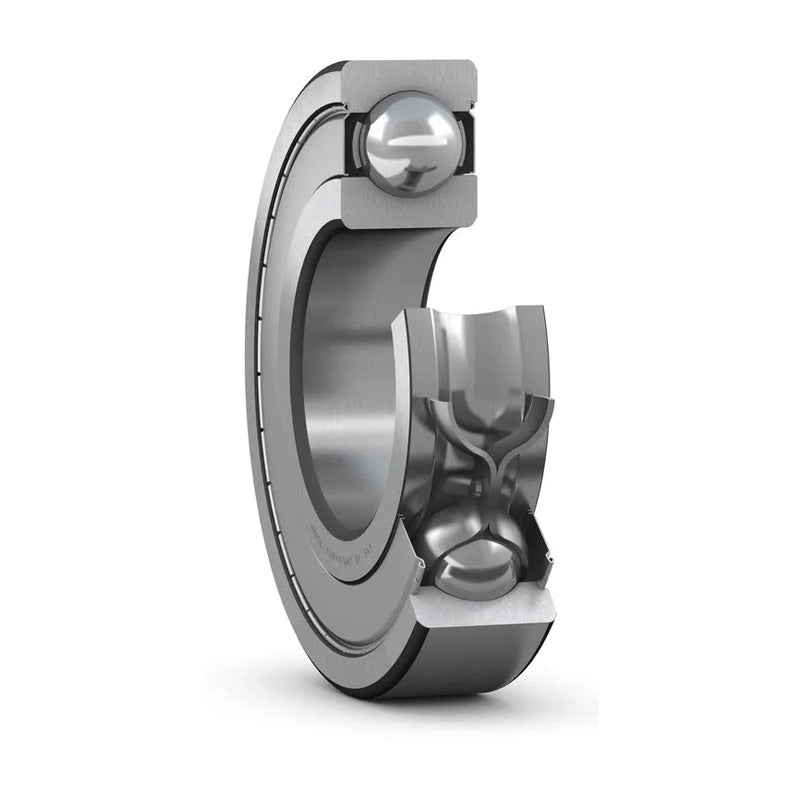

SKF 63022Z Metal Shielded Deep Groove Ball Bearing 15x42x13mm
- Regular price
- CHF 9.00 ex VAT
- Sale price
- CHF 9.00
- Regular price
-
In stock
Quantity Price Breaks
10+
CHF 8.01
19+
CHF 7.56
29+
CHF 7.47
39+
CHF 7.38
49+
CHF 7.29
74+
CHF 7.20
99+
CHF 6.75
199+
CHF 6.66
249+
CHF 6.57
499+
CHF 6.48
999+
CHF 6.30
SKU:
6302-2Z-SKF
SKF 63022Z Metal Shielded Deep Groove Ball Bearing 15x42x13mm
- Regular price
- CHF 9.00 ex VAT
- Sale price
- CHF 9.00
- Regular price
-
Description
|
Metal Shielded Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with metal shields inserted into the outer raceway, these fit in closely to the inner race providing protection against light mechanical damage, some protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. |
Technical
| d | = | 15mm |
| D | = | 42mm |
| B | = | 13mm |
| Dynamic load C | = | 11.9 kN |
| Static load Co | = | 5.4 kN |
| Fatigue load limit Pu | = | 0.228 kN |
| Reference speed | = | 38000 rpm |
| Limiting speed | = | 19000 rpm |
| Weight | = | 0.082 kg |
| d1 | = | 23.7mm |
| d2 | = | 0mm |
| D2 | = | 36.3mm |
| r1r2 min | = | 1mm |
| da min | = | 20.6mm |
| da max | = | 0mm |
| Da max | = | 36.4mm |
| ra max | = | 1mm |
| Calculation factor kr | = | 0.03 |
| Calculation factor f0 | = | 12 |
