SKU: 6300-2NSE-NACHI

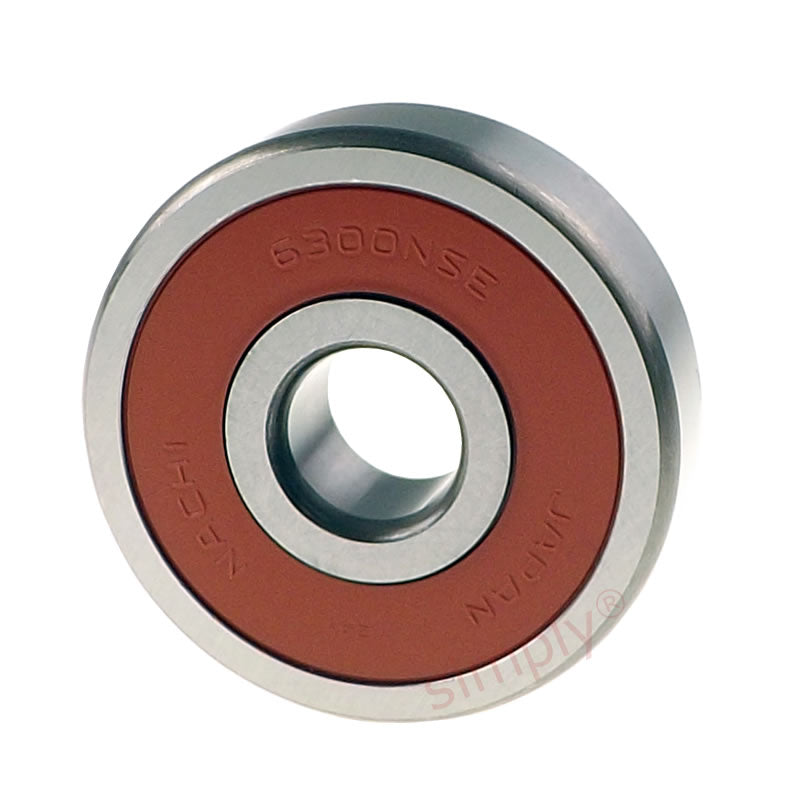

NACHI 63002NSE Contact Rubber Sealed Deep Groove Ball Bearing 10x35x11mm
- Regular price
- CHF 7.00 ex VAT
- Sale price
- CHF 7.00
- Regular price
-
ex VAT
In stock
Quantity Price Breaks
5
CHF 6.23
9
CHF 5.88
19
CHF 5.81
29
CHF 5.74
49
CHF 5.67
74
CHF 5.60
99
CHF 5.25
199
CHF 5.18
249
CHF 5.11
499
CHF 5.04
999
CHF 4.90
Description
|
NACHI Contact Rubber Sealed Deep Groove Ball Bearings: These deep groove ball bearings can sustain radial, axial or composite loads and because of simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation. This bearing has two contact rubber seals in contact with inner ring. Benefits: High-running accuracy and high-speed operation, excellent grease sealing at low speeds, excellent protection against dust and water. |
Technical
| Inside Diameter d | = | 10mm |
| Outside Diameter D | = | 35mm |
| Width B | = | 11mm |
| Min radius r | = | 0.6mm |
| Dynamic load | = | 8100 kN |
| Static load | = | 3450 kN |
| Max speed | = | 23000 rpm |
| da min | = | 15mm |
| Da max | = | 30mm |
| ra max | = | 0.6mm |
| Weight | = | 0.053 kg |
