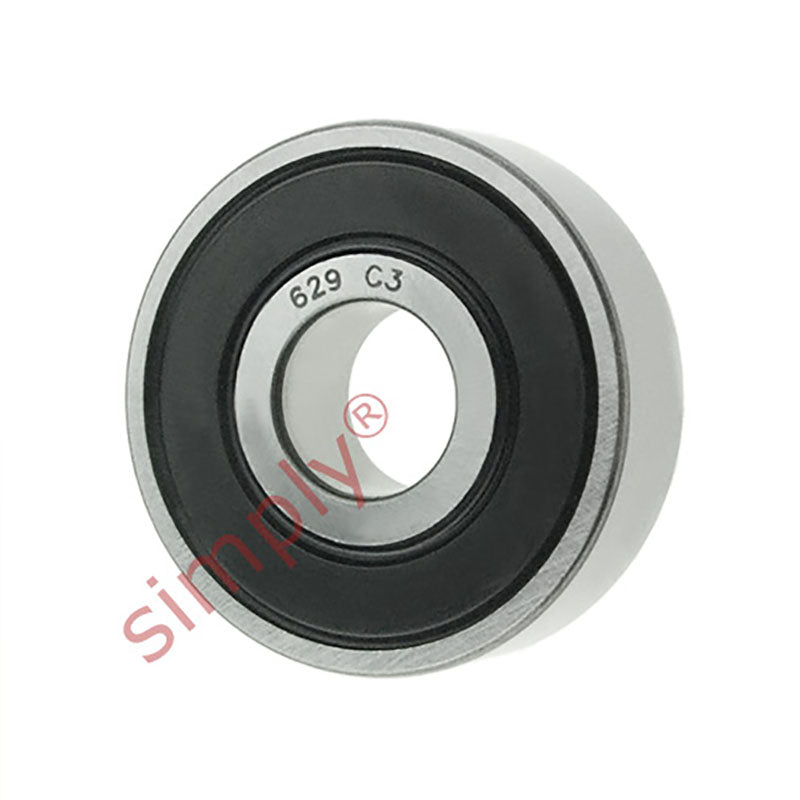

Major Branded 6292RSRC3 Rubber Sealed Deep Groove Ball Bearing 9x26x8mm

SKU: 629-2RSR/C3-MB

Major Branded 6292RSRC3 Rubber Sealed Deep Groove Ball Bearing 9x26x8mm

CHF 5.00 ex VAT
CHF 5.00
ex VAT
Equivalent to: 629NSEC3 629DUC3 629RSC3 629RSHC3 629PC3 629RSRC3 629LUC3 6292NSEC3 629DDUC3 6292RSC3 6292RS1C3 6292RSHC3 629PPC3 629LLU
In stock

Quantity Price Breaks

10 CHF 4.45
19 CHF 4.20
29 CHF 4.15
39 CHF 4.10
49 CHF 4.05
74 CHF 4.00
99 CHF 3.75
199 CHF 3.70
249 CHF 3.65
499 CHF 3.60
999 CHF 3.50
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
Major Branded 6292RSRC3 Rubber Sealed Deep Groove Ball Bearing 9x26x8mm
SKU: 629-2RSR/C3-MB

Major Branded 6292RSRC3 Rubber Sealed Deep Groove Ball Bearing 9x26x8mm

CHF 5.00 ex VAT
CHF 5.00
ex VAT

Description

Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing
Seals can be easily removed for applications that only require 1 seal.
Benefits: Prevents moisture and dirt getting into the bearing, lubricated for life

Technical

d = 9mm
D = 26mm
B = 8mm
Dynamic load C = 4.75 kN
Static load Co = 1.96 kN
Fatigue load limit Pu = 0.083 kN
Reference speed = 60000 rpm
Limiting speed = 19000 rpm
Mass = 0.02 kg
d1 = 12.6mm
D2 = 17.3mm
r1r2 min = 0.3mm
da min = 12
