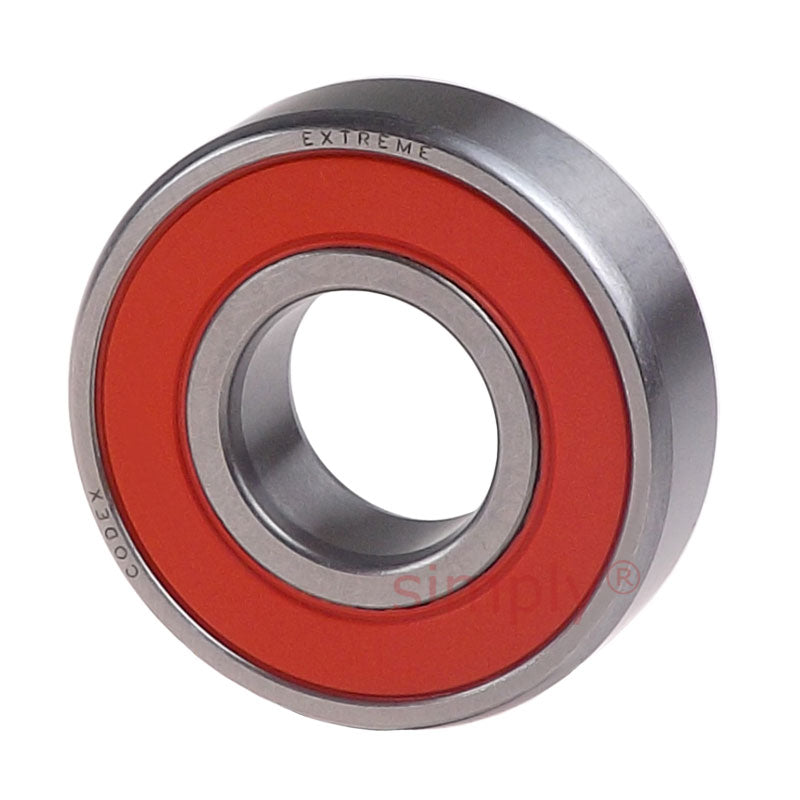

Codex 6272RSC3 Extreme Electric Motor Quality Rubber Sealed Deep Groove Ball Bearing 7x22x7mm

SKU: 627-2RS/C3-EMQ-CDX

Codex 6272RSC3 Extreme Electric Motor Quality Rubber Sealed Deep Groove Ball Bearing 7x22x7mm

CHF 5.00 ex VAT
CHF 5.00
ex VAT
Equivalent to: 627-2RS/C3
In stock

Quantity Price Breaks

4 CHF 4.45
10 CHF 4.20
20 CHF 4.15
30 CHF 4.10
50 CHF 4.05
75 CHF 4.00
100 CHF 3.75
200 CHF 3.70
250 CHF 3.65
500 CHF 3.60
1000 CHF 3.50
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
Codex 6272RSC3 Extreme Electric Motor Quality Rubber Sealed Deep Groove Ball Bearing 7x22x7mm
SKU: 627-2RS/C3-EMQ-CDX

Codex 6272RSC3 Extreme Electric Motor Quality Rubber Sealed Deep Groove Ball Bearing 7x22x7mm

CHF 5.00 ex VAT
CHF 5.00
ex VAT

Description

Extreme Electric Motor Quality Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. For use in electrical motors, tools and household appliances.
Seals can be easily removed for applications that only require 1 seal.
Benefits: Protection from dust and humidity, low vibrations and noisiness.

Technical

d = 7mm
D = 22mm
B = 7mm
Dynamic load C = 3.45 kN
Static load Co = 1.37 kN
Fatigue load limit Pu = 0.057
Reference speed = 70000 rpm
Limiting speed = 22000 rpm
Weight = 0.012 kg
d2 = 10.6mm
D2 = 19.2mm
r1r2 = 0.3mm
da min = 9.4mm
da max = 10.5mm
Da max = 19.6mm
ra max = 0.3mm
Calc factor kr = 0.025
Calc factor Cor f0 = 12
