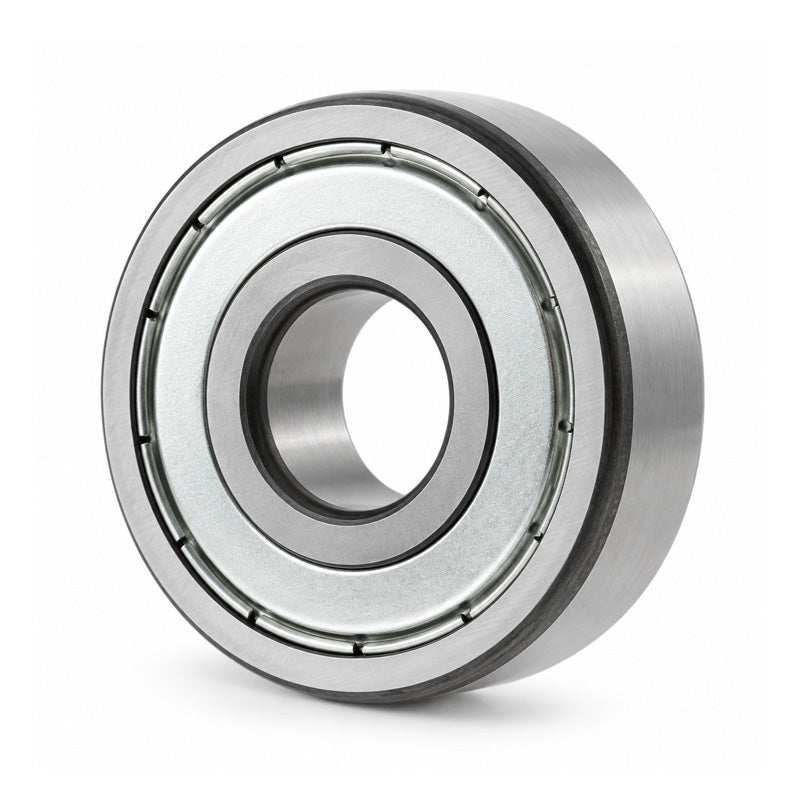

NACHI 6226ZZC3 Metal Shielded Deep Groove Ball Bearing 130x230x40mm

SKU: 6226-ZZ/C3-NACHI

NACHI 6226ZZC3 Metal Shielded Deep Groove Ball Bearing 130x230x40mm

CHF 3,399.00 ex VAT
CHF 3,399.00
ex VAT
Equivalent to: 6226ZZEC3 62262ZC3 6226.2ZC3 6226KDDC3 6226DDC3 62262ZRC3 6226FFC3
Not in stock

Quantity Price Breaks

5 CHF 3,025.11
9 CHF 2,855.16
19 CHF 2,821.17
29 CHF 2,787.18
49 CHF 2,753.19
74 CHF 2,719.20
99 CHF 2,549.25
199 CHF 2,515.26
249 CHF 2,481.27
499 CHF 2,447.28
999 CHF 2,379.30
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
NACHI 6226ZZC3 Metal Shielded Deep Groove Ball Bearing 130x230x40mm
SKU: 6226-ZZ/C3-NACHI

NACHI 6226ZZC3 Metal Shielded Deep Groove Ball Bearing 130x230x40mm

CHF 3,399.00 ex VAT
CHF 3,399.00
ex VAT

Description

NACHI Metal Shielded Deep Groove Ball Bearings: These deep groove ball bearings can sustain radial, axial or composite loads and because of simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation. This bearing has two steel shields to provide a labyrinth clearance.
Benefits: High-running accuracy and high-speed operation.

Technical

Inside Diameter d = 130mm
Outside Diameter D = 230mm
Width B = 40mm
Min radius r = 3mm
Dynamic load = 167000 kN
Static load = 146000 kN
Max speed = 2700 rpm
da min = 144mm
Da max = 216mm
ra max = 2.5mm
Weight = 5.82 kg
