SKU: 6215/C3-MB

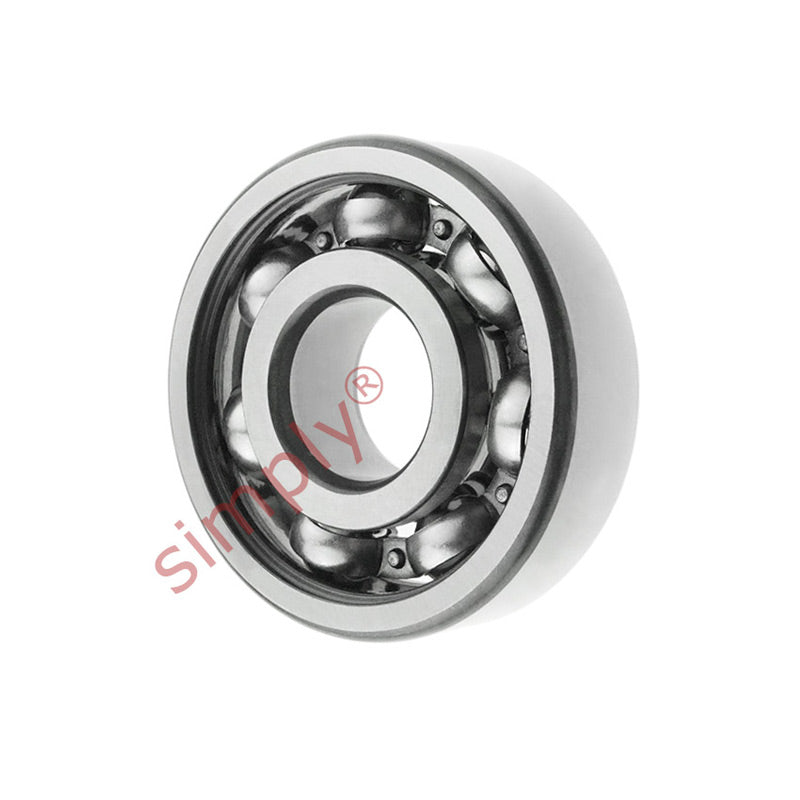

Major Branded 6215C3 Open Deep Groove Ball Bearing 75x130x25mm
- Regular price
- CHF 61.00 ex VAT
- Sale price
- CHF 61.00
- Regular price
-
Not in stock
Quantity Price Breaks
10
CHF 54.29
19
CHF 51.24
29
CHF 50.63
39
CHF 50.02
49
CHF 49.41
74
CHF 48.80
99
CHF 45.75
199
CHF 45.14
249
CHF 44.53
499
CHF 43.92
999
CHF 42.70
SKU:
6215/C3-MB
Major Branded 6215C3 Open Deep Groove Ball Bearing 75x130x25mm
- Regular price
- CHF 61.00 ex VAT
- Sale price
- CHF 61.00
- Regular price
-
Description
|
Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available. |
Technical
| d | = | 75mm |
| D | = | 130mm |
| B | = | 25mm |
| Dynamic load C | = | 68.9 kN |
| Static load Co | = | 49 kN |
| Fatigue load limit Pu | = | 2.04 kN |
| Reference speed | = | 10000 rpm |
| Limiting speed | = | 6700 rpm |
| Mass | = | 1.2 kg |
| d1 | = | 92.1mm |
| D1 | = | 113mm |
| D2 | = | 117mm |
| r1r2 min | = | 1.5mm |
| da min | = | 84mm |
| Da max | = | 121mm |
| ra max | = | 1.5mm |
| Calc factor Kr | = | 0.025 |
| Calc factor | = | 15 |
