SKU: 619/7-MB

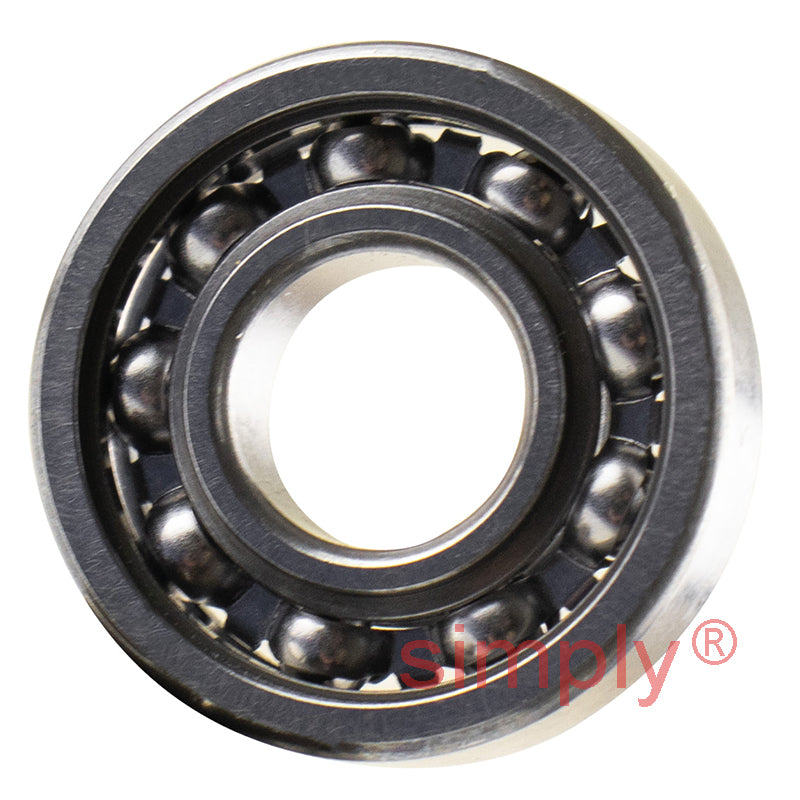

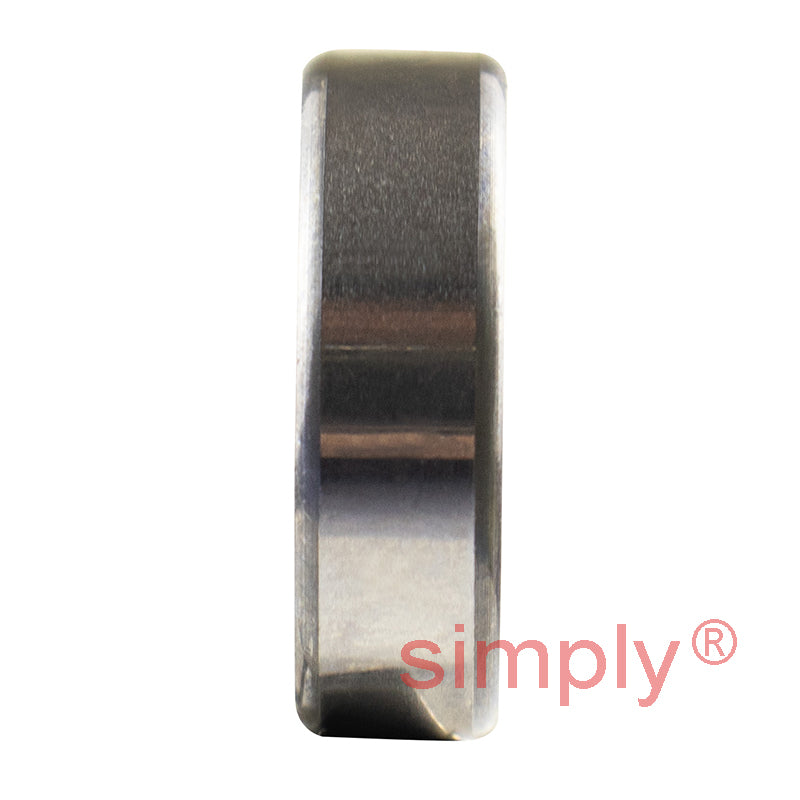

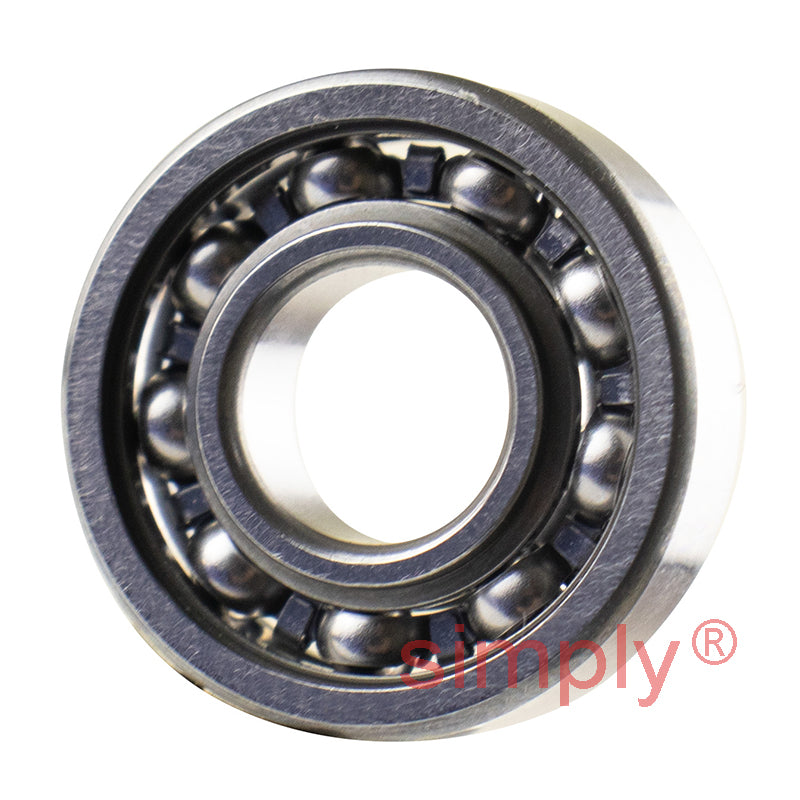

Major Branded 619/7 Open Deep Groove Ball Bearing 7x17x5mm
- Regular price
- CHF 9.00 ex VAT
- Sale price
- CHF 9.00
- Regular price
-
In stock
Quantity Price Breaks
10
CHF 8.01
19
CHF 7.56
29
CHF 7.47
39
CHF 7.38
49
CHF 7.29
74
CHF 7.20
99
CHF 6.75
199
CHF 6.66
249
CHF 6.57
499
CHF 6.48
999
CHF 6.30
SKU:
619/7-MB
Major Branded 619/7 Open Deep Groove Ball Bearing 7x17x5mm
- Regular price
- CHF 9.00 ex VAT
- Sale price
- CHF 9.00
- Regular price
-
Description
|
Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available. |
Technical
| d | = | 7mm |
| D | = | 17mm |
| B | = | 5mm |
| Dynamic load C | = | 1.48 kN |
| Static load Co | = | 0.56 kN |
| Fatigue load limit Pu | = | 0.024 kN |
| Reference speed | = | 90000 rpm |
| Limiting speed | = | 56000 rpm |
| Mass | = | 0.0049 kg |
| d1 | = | 9.8mm |
| D1 | = | 14.2mm |
| D2 | = | 15.2mm |
| r1r2 min | = | 0.3mm |
| da min | = | 9mm |
| Da max | = | 15mm |
| ra max | = | 0.3mm |
| Calc factor Kr | = | 0.02 |
| Calc factor | = | 10 |
