SKU: 6015-2Z-HT-330
6015ZZHT330 High Temp 330C Shielded Deep Groove Ball Bearing 75x115x20mm Max 63rpm
- Regular price
- CHF 50.00 ex VAT
- Sale price
- CHF 50.00
- Regular price
-
Not in stock
Quantity Price Breaks
3
CHF 44.50
5
CHF 42.00
10
CHF 41.50
15
CHF 41.00
20
CHF 40.50
30
CHF 40.00
40
CHF 37.50
50
CHF 37.00
60
CHF 36.50
75
CHF 36.00
100
CHF 35.00
SKU:
6015-2Z-HT-330
6015ZZHT330 High Temp 330C Shielded Deep Groove Ball Bearing 75x115x20mm Max 63rpm
- Regular price
- CHF 50.00 ex VAT
- Sale price
- CHF 50.00
- Regular price
-
Description

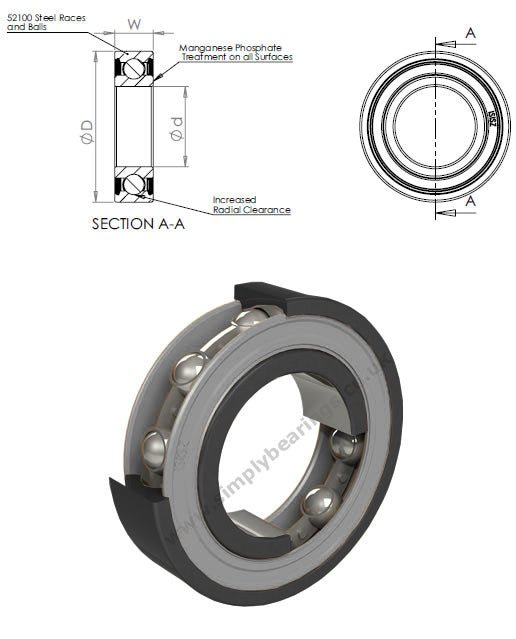

HT330 Series High Temperature Bearings: Manufactured with a steel cage to further enhance the bearings performance, supplied metal shielded are designed for high temperatures up to + 330 degrees Celsius and down to - 30 degrees Celsius. At temperatures over + 200 dry lubrication pertains. Designed for low speeds at temperature without maintenance. Internal clearance is C5+ and all have a BLACK PHOSPHATE COATING
Benefits: High temperature resilience, low maintenance
Technical
| Inside diameter d | = | 75mm |
| Outside diameter D | = | 115mm |
| Width W | = | 20mm |
| Static load max | = | 19.65 kN |
| Max operating temperature | = | 330 deg Celcius |
| Maximum speed | = | 63 rpm |
| Weight | = | 640 g |
