SKU: 6011NR-MB

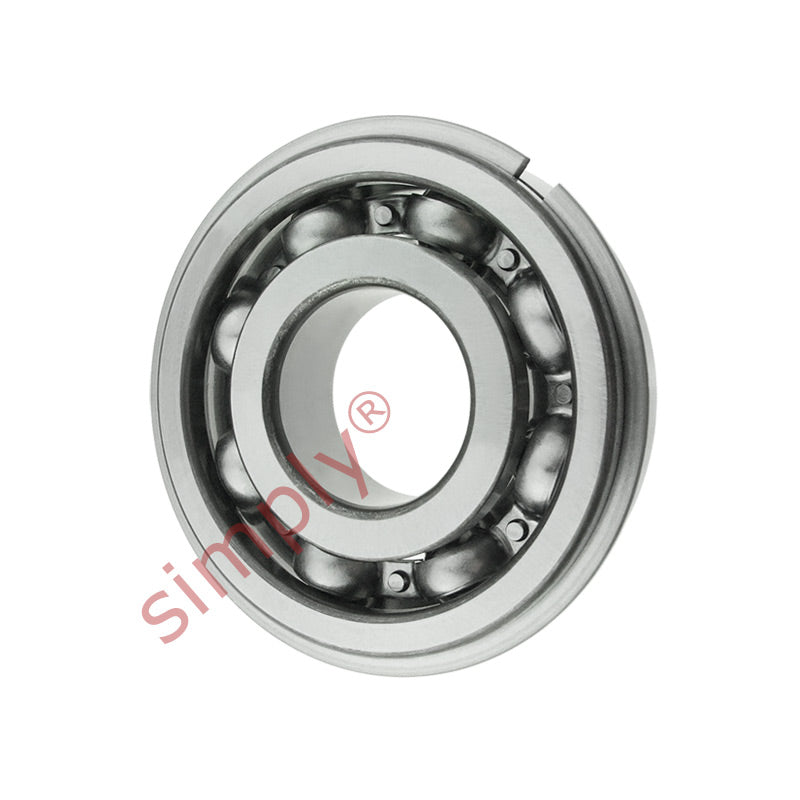

6011NR Deep Groove Ball Bearing with Snap Ring 55x90x18mm
- Regular price
- CHF 50.00 ex VAT
- Sale price
- CHF 50.00
- Regular price
-
Not in stock
Quantity Price Breaks
10
CHF 44.50
19
CHF 42.00
29
CHF 41.50
39
CHF 41.00
49
CHF 40.50
74
CHF 40.00
99
CHF 37.50
199
CHF 37.00
249
CHF 36.50
499
CHF 36.00
999
CHF 35.00
SKU:
6011NR-MB
6011NR Deep Groove Ball Bearing with Snap Ring 55x90x18mm
- Regular price
- CHF 50.00 ex VAT
- Sale price
- CHF 50.00
- Regular price
-
Description
|
Deep Groove Ball Bearings with Snap Ring: A popular choice where the housings is part of a machine frame casing, these bearing types are manufactured without seals to allow the circulation of the oil or grease lubricant. The snap ring is made from a spring steel material and fits into an annular groove around the outside of the bearing which is offset to one side. |
Technical
| d | = | 55mm |
| D | = | 90mm |
| B | = | 18mm |
| Dyamic load C | = | 29.6 kN |
| Static load Co | = | 21.2 kN |
| Fatigue load limit Pu | = | 0.9 kN |
| Reference speed | = | 16000 rpm |
| Limiting speed | = | 10000 rpm |
| Mass | = | 0.38 kg |
| d1 | = | 66.3mm |
| d2 | = | 76.5mm |
| D2 | = | 81.5mm |
| r1r2 min | = | 1.1mm |
| da min | = | 61 |
