SKU: 53217+U217-EU
53217 Budget Single Thrust Ball Bearing with Spherical Housing Seat U217 85x125x37mm
- Regular price
- CHF 117.00 ex VAT
- Sale price
- CHF 117.00
- Regular price
-
Not in stock
Quantity Price Breaks
10
CHF 104.13
19
CHF 98.28
29
CHF 97.11
39
CHF 95.94
49
CHF 94.77
74
CHF 93.60
99
CHF 87.75
199
CHF 86.58
249
CHF 85.41
499
CHF 84.24
999
CHF 81.90
SKU:
53217+U217-EU
53217 Budget Single Thrust Ball Bearing with Spherical Housing Seat U217 85x125x37mm
- Regular price
- CHF 117.00 ex VAT
- Sale price
- CHF 117.00
- Regular price
-
Description
|
Thrust Ball Thrust Bearings Spherical Seat Type: These bearings consist of three parts, a shaft and housing washer that have annular grooves in them and a caged ball bearing assembly that is sandwiched in between them. The lower washer has a spherical face to be used with a spherical housing washer. Assembly and mounting is a simple operation as the parts are separate. They support axial loads in one direction. Clearance is provided in the bore of one of the raceways to allow for alignment. Benefits: Axial loading, ease of mounting and assembly |

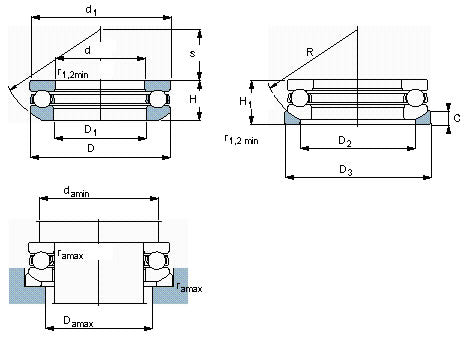

Technical
| d | = | 85mm |
| D | = | 125mm |
| H1 | = | 37mm |
| Dynamic load C | = | 97.5 kN |
| Static load Co | = | 275 kN |
| Fatigue load limit Pu | = | 9.8 kN |
| Minimum load factor A | = | 0.39 |
| Reference speed | = | 2200 rpm |
| Limiting Speed | = | 3000 rpm |
| Weight | = | 1.5 kg |
| Seating Washer | = | U217 |
| d1 | = | 125mm |
| D1 | = | 88mm |
| D2 | = | 105mm |
| D3 | = | 130mm |
| H | = | 33.1mm |
| C | = | 11mm |
| R | = | 100mm |
| s | = | 52mm |
| r1r2 min | = | 1mm |
| da max | = | 109mm |
| Da max | = | 105mm |
| ra max | = | 1mm |
