SKU: 5312-2RS-KSM

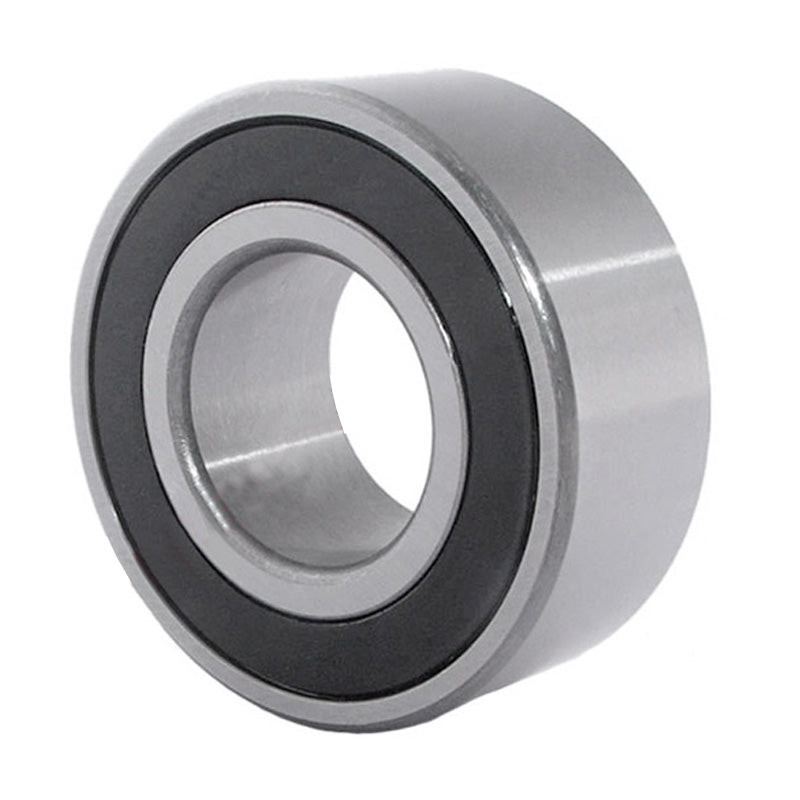

KSM 53122RS Rubber Sealed Double Row Angular Contact Ball Bearing 60x130x54mm
- Regular price
- CHF 118.00 ex VAT
- Sale price
- CHF 118.00
- Regular price
-
In stock
Quantity Price Breaks
4
CHF 105.02
9
CHF 99.12
19
CHF 97.94
29
CHF 96.76
49
CHF 95.58
99
CHF 94.40
179
CHF 88.50
249
CHF 87.32
499
CHF 86.14
699
CHF 84.96
999
CHF 82.60
SKU:
5312-2RS-KSM
KSM 53122RS Rubber Sealed Double Row Angular Contact Ball Bearing 60x130x54mm
- Regular price
- CHF 118.00 ex VAT
- Sale price
- CHF 118.00
- Regular price
-
Description
Rubber Sealed Double Row Angular Contact Ball Bearings: Correspond to the design of two single row angular contact ball bearings side by side but occupying less space. They can accommodate radial loads as well as axial loads acting in both directions. They provide a rigid bearing arrangement and accommodate tilting moments well
Benefits: Compact, rigid, accommodates tilting, radial and axial loads
Benefits: Compact, rigid, accommodates tilting, radial and axial loads
Technical
| --- | = | Bearing Dimensions |
| d | = | 60mm |
| D | = | 130mm |
| B | = | 54mm |
| --- | = | Abutment Dimensions |
| a | = | 79.5mm |
| r1r2 min | = | 2.1mm |
| r1r2 max | = | 2mm |
| Da min | = | 72mm |
| da max | = | 118mm |
| --- | = | Speeds, Weights and Loads |
| Basic Load Raiting Dynamic Cr | = | 122000 N |
| Basic Static Load Raiting Cor | = | 95500 N |
| Limiting Speed in Grease | = | 3000 rpm |
| Limiting Speed in Oil | = | 4000 rpm |
| Weight | = | 3.05 kg |
