SKU: 530SPC6-MB

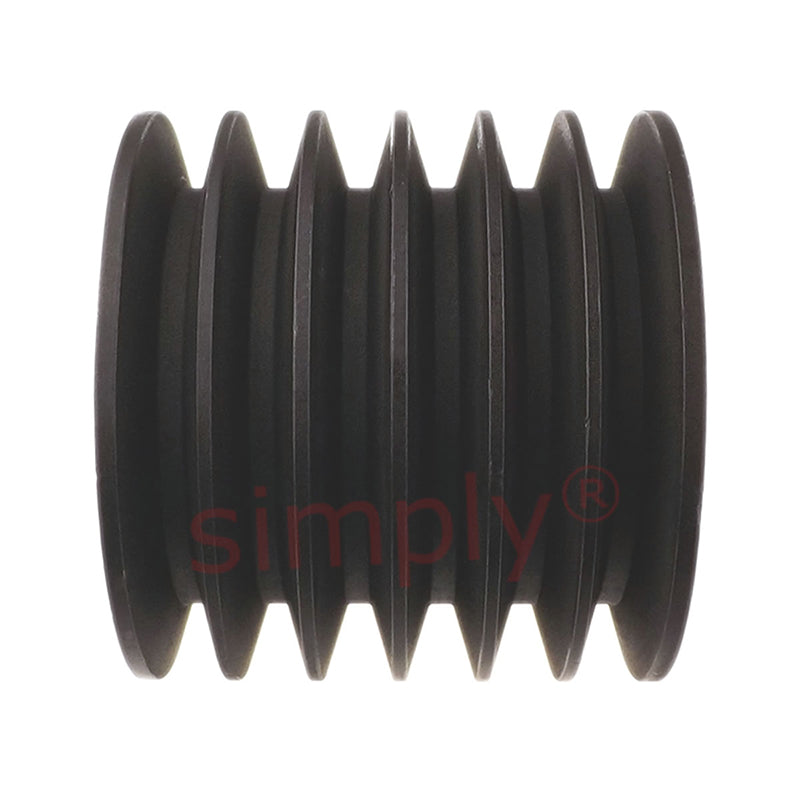

530X6SPC 530mm Pitch Diameter SPC Section Tapered Locking Bush Type Pulley with 6 Grooves (Bush not Incl.)
- Regular price
- CHF 480.00 ex VAT
- Sale price
- CHF 480.00
- Regular price
-
Not in stock
Quantity Price Breaks
3
CHF 427.20
5
CHF 403.20
9
CHF 398.40
19
CHF 393.60
49
CHF 388.80
74
CHF 384.00
99
CHF 360.00
199
CHF 355.20
249
CHF 350.40
499
CHF 345.60
999
CHF 336.00
SKU:
530SPC6-MB
530X6SPC 530mm Pitch Diameter SPC Section Tapered Locking Bush Type Pulley with 6 Grooves (Bush not Incl.)
- Regular price
- CHF 480.00 ex VAT
- Sale price
- CHF 480.00
- Regular price
-
Description
|
SPC Section V Belt Pulleys: Manufactured from fine grain gray cast iron grade GG25 and are phosphated. Groove dimensions conform to ISO 4183 for both eccentricity of outside diameter to bore and groove side wobble tolerance. They are suitable for use with all wedge belts according to ISO 4184 and all classical V-belts according to ISO 4184. Speeds: Circumferential speeds of up to 40 m/s are permissible. All our pulleys are balanced to grade Q6.3 or better. Pulleys with a weight of 100kg and above are dynamically balanced (two planes). All pulleys with a weight less than 100kg are statically machine balanced (one plane). Suitability: Suitable for use with C section and SPC section V-Belts Benefits: Cost effective replacement |

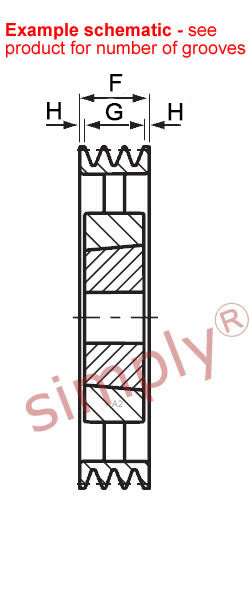

Technical
| Number of Grooves | = | 6 |
| Bush | = | < |
| a href=" | = | advanced_search_result.php?sort=2a& |
| search_in_description=1& | = | keywords=5050+tapered+locking+bush" |
| > | = | 5050 Click Here< |
| /a> | = | |
| Pitch Diameter B | = | 530mm |
| Overall Outer Diameter C | = | 539.5mm |
| Max Bore A | = | 125mm |
| Overall Sheave Depth F | = | 161.5mm |
| Bush Seat Length G | = | 127mm |
| Inner Recess Length H | = | 17.3mm |
