SKU: 5303-KSM

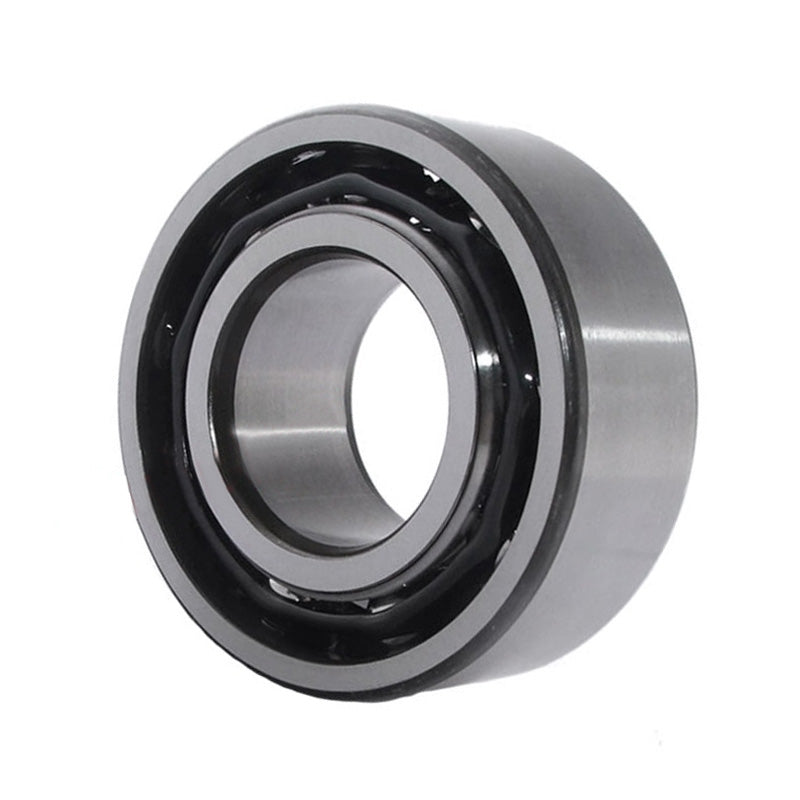

KSM 5303 Open Double Row Angular Contact Ball Bearing 17x47x22.2mm
- Regular price
- CHF 24.00 ex VAT
- Sale price
- CHF 24.00
- Regular price
-
In stock
Quantity Price Breaks
4
CHF 21.36
9
CHF 20.16
19
CHF 19.92
29
CHF 19.68
49
CHF 19.44
99
CHF 19.20
179
CHF 18.00
249
CHF 17.76
499
CHF 17.52
699
CHF 17.28
999
CHF 16.80
SKU:
5303-KSM
KSM 5303 Open Double Row Angular Contact Ball Bearing 17x47x22.2mm
- Regular price
- CHF 24.00 ex VAT
- Sale price
- CHF 24.00
- Regular price
-
Description
Open Type Double Row Angular Contact Ball Bearings: Correspond to the design of two single row angular contact ball bearings side by side but occupying less space. They can accommodate radial loads as well as axial loads acting in both directions. They provide a rigid bearing arrangement and accommodate tilting moments well
Benefits: Compact, rigid, accommodates tilting, radial and axial loads
Benefits: Compact, rigid, accommodates tilting, radial and axial loads
Technical
| --- | = | Bearing Dimensions |
| d | = | 17mm |
| D | = | 47mm |
| B | = | 22.2mm |
| --- | = | Abutment Dimensions |
| a | = | 28.5mm |
| r1r2 min | = | 1mm |
| r1r2 max | = | 1mm |
| Da min | = | 23mm |
| da max | = | 41mm |
| --- | = | Speeds, Weights and Loads |
| Basic Load Raiting Dynamic Cr | = | 20100 N |
| Basic Static Load Raiting Cor | = | 12100 N |
| Limiting Speed in Grease | = | 9000 rpm |
| Limiting Speed in Oil | = | 12000 rpm |
| Weight | = | 0.181 kg |
