SKU: 52409-EU

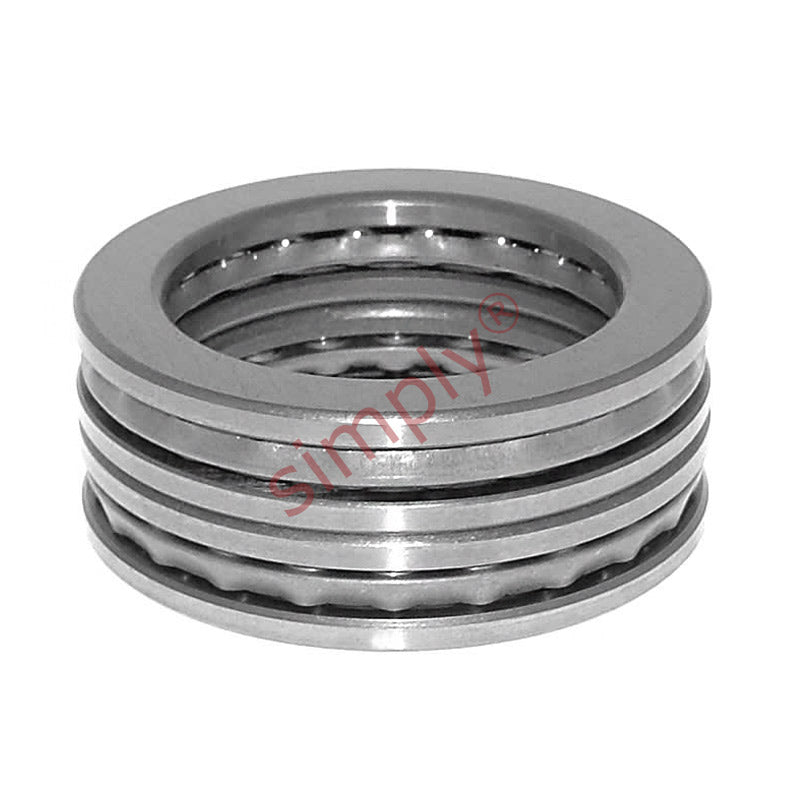

52409 Budget Double Thrust Ball Bearing with Flat Seats 35x100x72mm
- Regular price
- CHF 275.00 ex VAT
- Sale price
- CHF 275.00
- Regular price
-
Not in stock
Quantity Price Breaks
10
CHF 244.75
19
CHF 231.00
29
CHF 228.25
39
CHF 225.50
49
CHF 222.75
74
CHF 220.00
99
CHF 206.25
199
CHF 203.50
249
CHF 200.75
499
CHF 198.00
999
CHF 192.50
SKU:
52409-EU
52409 Budget Double Thrust Ball Bearing with Flat Seats 35x100x72mm
- Regular price
- CHF 275.00 ex VAT
- Sale price
- CHF 275.00
- Regular price
-
Description
|
Double Thrust Ball Thrust Bearings Spherical Seat Type: These bearings consist of five parts, a top, bottom and middle plate with annular grooves in them and two caged ball bearing assemblies that are sandwiched in between them. Assembly and mounting is a simple operation as the parts are separate. They support axial loads in two directions. Clearance is provided in the bore of Centre of the raceways to allow for alignment. |

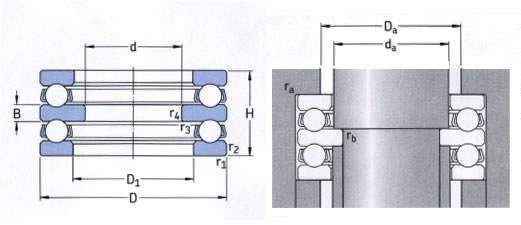

Technical
| d | = | 35mm |
| D | = | 100mm |
| H | = | 72mm |
| Dynamic load C | = | 130 kN |
| Static load Co | = | 265 kN |
| Fatigue load Pu | = | 9.8 kN |
| Minimum load factor A | = | 0.37 |
| Reference speed | = | 2200 rpm |
| Limiting speed | = | 3000 rpm |
| Weight | = | 2.7 kg |
| D1 | = | 47mm |
| B | = | 17mm |
| r1r2 min | = | 1.1mm |
| r3r4 min | = | 0.6mm |
| da | = | 45mm |
| Da max | = | 67mm |
| ra max | = | 1mm |
| rb max | = | 0.6mm |
