SKU: 52214.MB

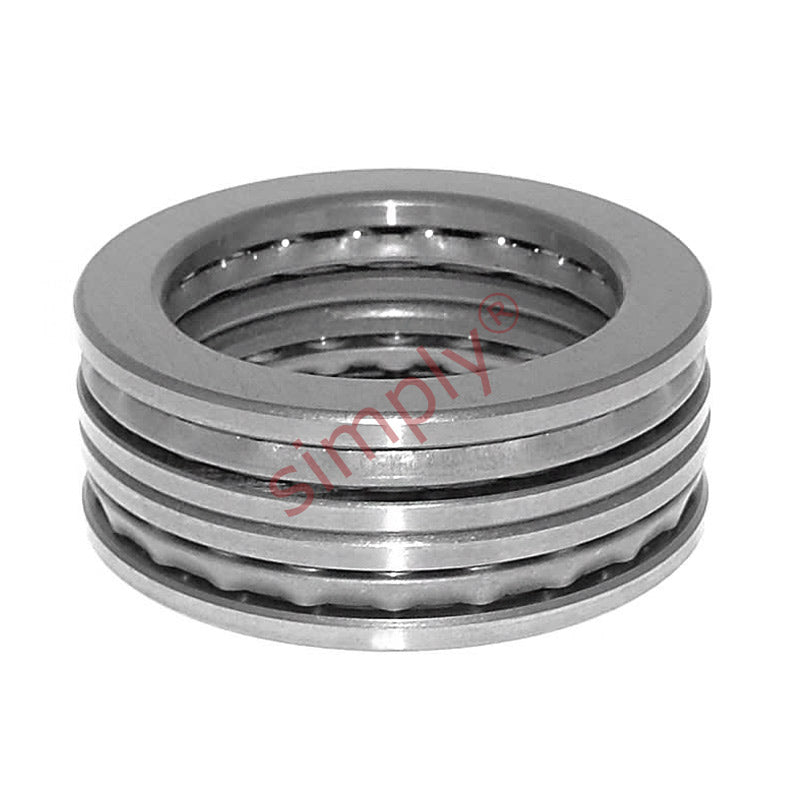

52214 Double Thrust Ball Bearing with Flat Seats 55x105x47mm
- Regular price
- CHF 132.00 ex VAT
- Sale price
- CHF 132.00
- Regular price
-
ex VAT
Not in stock
Quantity Price Breaks
10
CHF 117.48
19
CHF 110.88
29
CHF 109.56
39
CHF 108.24
49
CHF 106.92
74
CHF 105.60
99
CHF 99.00
199
CHF 97.68
249
CHF 96.36
499
CHF 95.04
999
CHF 92.40
Description
|
Double Thrust Ball Thrust Bearings Spherical Seat Type: These bearings consist of five parts, a top, bottom and middle plate with annular grooves in them and two caged ball bearing assemblies that are sandwiched in between them. Assembly and mounting is a simple operation as the parts are separate. They support axial loads in two directions. Clearance is provided in the bore of Centre of the raceways to allow for alignment. |
Technical
| d | = | 55mm |
| D | = | 105mm |
| H | = | 47mm |
| Dynamic load C | = | 65 kN |
| Static load Co | = | 173 kN |
| Fatigue load Pu | = | 6.4 kN |
| Minimum load factor A | = | 0.16 |
| Reference speed | = | 2600 rpm |
| Limiting speed | = | 3600 rpm |
| Weight | = | 1.5 kg |
| D1 | = | 72mm |
| B | = | 10mm |
| r1r2 min | = | 1mm |
| r3r4 min | = | 1mm |
| da | = | 70mm |
| Da max | = | 84mm |
| ra max | = | 1mm |
| rb max | = | 1mm |
