SKU: 51126-EU
51126 Budget Single Thrust Ball Bearing 130x170x30mm
- Regular price
- CHF 81.00 ex VAT
- Sale price
- CHF 81.00
- Regular price
-
In stock
Quantity Price Breaks
10
CHF 72.09
19
CHF 68.04
29
CHF 67.23
39
CHF 66.42
49
CHF 65.61
74
CHF 64.80
99
CHF 60.75
199
CHF 59.94
249
CHF 59.13
499
CHF 58.32
999
CHF 56.70
SKU:
51126-EU
51126 Budget Single Thrust Ball Bearing 130x170x30mm
- Regular price
- CHF 81.00 ex VAT
- Sale price
- CHF 81.00
- Regular price
-
Description
Thrust Ball Thrust Bearings: These bearings consist of three parts, a shaft and housing washer that have angular grooves in them and a caged ball bearing assembly that is sandwiched in between them. Assembly and mounting is a simple operation as the parts are separate. They support axial loads in one direction. Clearance is provided in the bore of one of the raceways to allow for alignment.
Benefits: Axial loading, ease of mounting and assembly

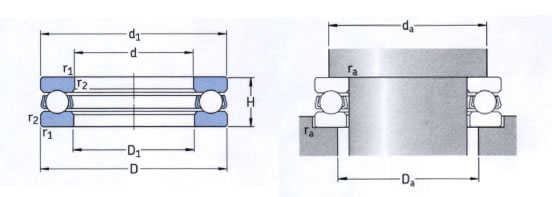

Technical
| d | = | 130mm |
| D | = | 170mm |
| H | = | 30mm |
| Dynamic load C | = | 111 kN |
| Static load Co | = | 425 kN |
| Fatigue load limit Pu | = | 12.9 kN |
| Minimum load factor A | = | 0.94 |
| Reference speed | = | 1900 rpm |
| Limiting speed | = | 2600 rpm |
| Weight | = | 1.85 kg |
| d1 | = | 170mm |
| D1 | = | 132mm |
| r1r2 min | = | 1mm |
| da min | = | 154mm |
| Da max | = | 146mm |
| ra max | = | 1mm |
