SKU: 50-2-SYN-NO12-RENOLD
Renold Synergy 50-2-NO12 ANSI / AS Duplex Chain Single Cranked Cottered Link 5/8 inch Pitch
- Regular price
- CHF 47.00 ex VAT
- Sale price
- CHF 47.00
- Regular price
-
Not in stock
Quantity Price Breaks
2
CHF 41.83
5
CHF 39.48
10
CHF 39.01
29
CHF 38.54
49
CHF 38.07
75
CHF 37.60
100
CHF 35.25
200
CHF 34.78
250
CHF 34.31
500
CHF 33.84
1000
CHF 32.90
SKU:
50-2-SYN-NO12-RENOLD
Renold Synergy 50-2-NO12 ANSI / AS Duplex Chain Single Cranked Cottered Link 5/8 inch Pitch
- Regular price
- CHF 47.00 ex VAT
- Sale price
- CHF 47.00
- Regular price
-
Description

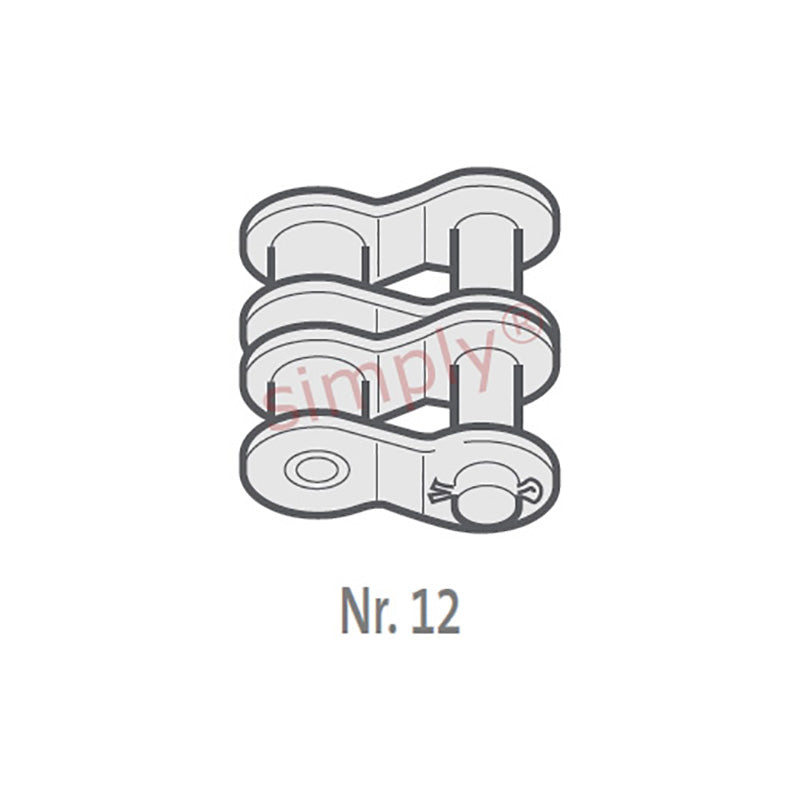

| Renold No. 12 ANSI Duplex Connecting Link: A single link with cranked plates pressed onto a bush and roller assemble at the narrow end. A clearance fit connecting pin (No. 128) is fitted at the wide end and is secured by a split pin. |
Technical
| Pitch (A) | = | 0.625 inch |
| Pitch (A) | = | 15.875mm |
| Inside Width min (B) | = | 9.4mm |
| Roller Diameter max (C) | = | 10.16mm |
| Plate Height max (D) | = | 14.6mm |
| Plate Width Inner max (E) | = | 2.04mm |
| Plate Width Outer max (F) | = | 2.04mm |
| Pin Diameter max (G) | = | 5.08mm |
| Pin Length max (H2) | = | 38.4mm |
| Connecting Link Extension max (J) | = | 2.7mm |
| Transverse Pitch nom (K) | = | 18.11mm |
| ISO606 Tensile Strength min | = | 43600 N |
| Weight | = | 0.01kg/m |
