SKU: 392XL-037-196

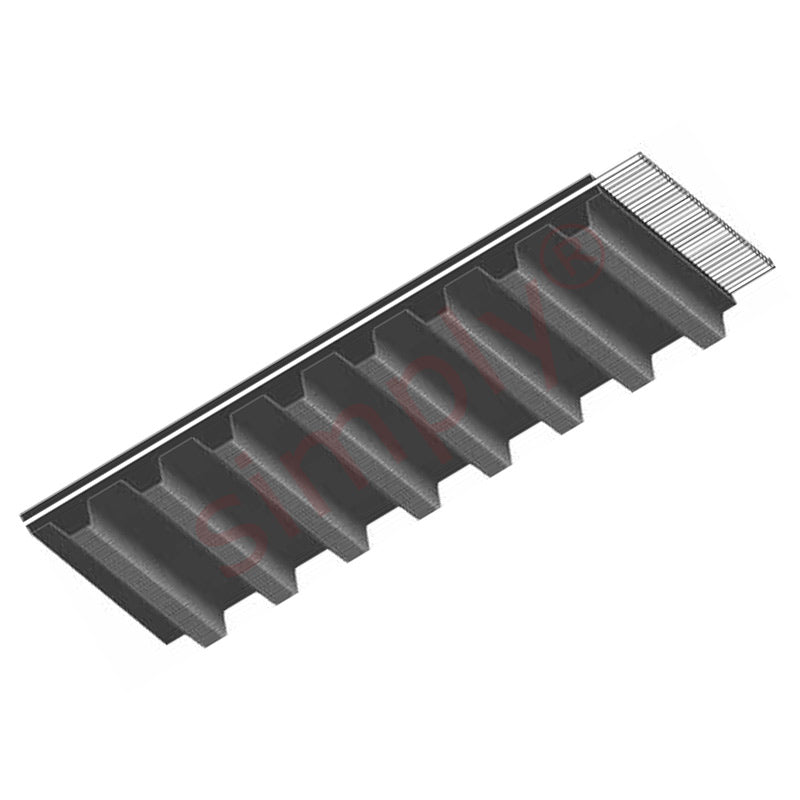

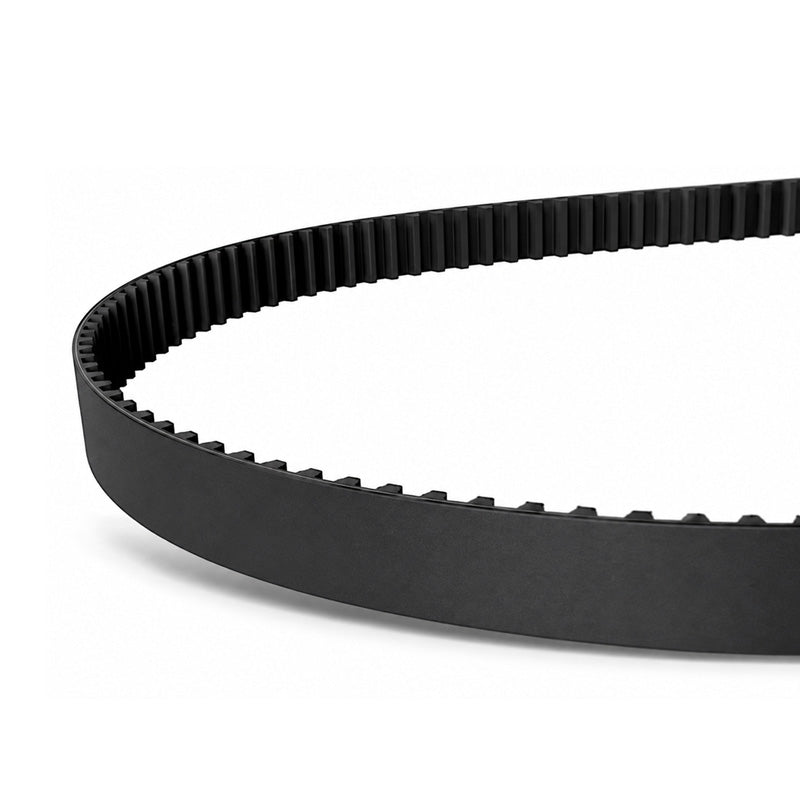

392XL037 Major Brand Synchronous Toothed Belt 0.38 inch Wide 39.2 inch Length 196 Teeth
- Regular price
- CHF 7.00 ex VAT
- Sale price
- CHF 7.00
- Regular price
-
In stock
Quantity Price Breaks
3
CHF 6.23
5
CHF 5.88
10
CHF 5.81
15
CHF 5.74
20
CHF 5.67
30
CHF 5.60
40
CHF 5.25
50
CHF 5.18
60
CHF 5.11
75
CHF 5.04
100
CHF 4.90
SKU:
392XL-037-196
392XL037 Major Brand Synchronous Toothed Belt 0.38 inch Wide 39.2 inch Length 196 Teeth
- Regular price
- CHF 7.00 ex VAT
- Sale price
- CHF 7.00
- Regular price
-
Description
|
Synchronous Drive Belts: Power transmission belts have become a valuable element of synchronous
transmission throughout the entire field of drive technology. They enable
purpose-made solutions to be realized effectively and economically. Thanks to their high flexibility synchronous drive belts enable low-cost design, even with difficult drive system requirements such as high transmission ratios, high belt speeds, small pulley diameters and back tensioning rollers. Benefits: Synchronised drive, Outstanding resistance to fatigue and deformation, as well as a good resistance to environmental influences, temperature extremes and ageing, are all factors which give the user high service reliability and freedom from maintenance. |
Technical
| Belt width | = | 0.38 inch = 9.53mm |
| Pitch length | = | 39.2 inch = 995.68mm |
| Number of teeth | = | 196 |
| Tooth pitch t | = | 0.2 inch |
| Flank angle f | = | 50 degrees |
| Tooth height h< | = | sub> |
| t< | = | /sub> |
| = | 0.05 inch | |
| Pitch zone u | = | 0.01 inch |
