SKU: 3807.B.2RSR.TVH

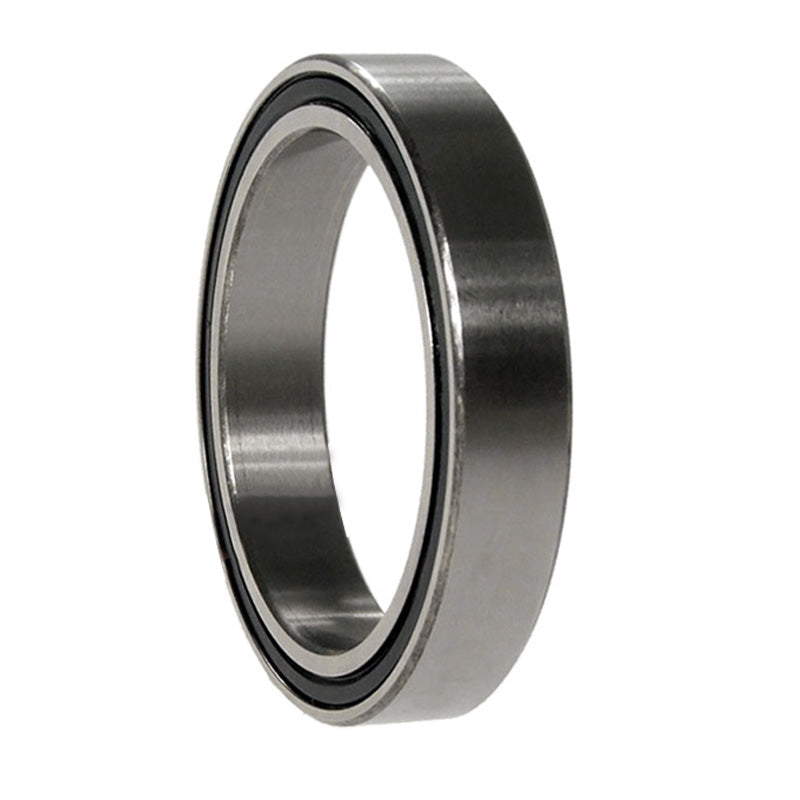

INA 3807B2RSRTVH Rubber Sealed Double Row Angular Contact Ball Bearing 35x47x10mm
- Regular price
- CHF 52.00 ex VAT
- Sale price
- CHF 52.00
- Regular price
-
ex VAT
In stock
Quantity Price Breaks
10
CHF 46.28
19
CHF 43.68
29
CHF 43.16
39
CHF 42.64
49
CHF 42.12
74
CHF 41.60
99
CHF 39.00
199
CHF 38.48
249
CHF 37.96
499
CHF 37.44
999
CHF 36.40
Description
|
Double Row Thin Section Sealed Angular Contact Ball Bearings: These bearings have large bore to outside diameter ratio and have internal raceways that are effectively opposite each other, they are designed to accommodate both axial and radial loads and have a tremendous load bearing capacity Benefits: Compact, rigid, accommodates tilting, radial and axial loads, rubber seals |
Technical
| d | = | 35mm |
| D | = | 47mm |
| B | = | 10mm |
| a | = | 22.6mm |
| d1 max | = | 44.1mm |
| Da max | = | 45mm |
| da min | = | 37mm |
| ra max | = | 0.3mm |
| r min | = | 0.3mm |
| Contact angle & | = | alpha |
| = | 25& | |
| deg | = | |
| Weight | = | 0.041 kg |
| Dynamic load Cr | = | 6500 N |
| Static load Cor | = | 6800 N |
| Fatigue limit load Cur | = | 365 N |
| Reference speed | = | 7000 rpm |
| Limiting Speed | = | 7000 rpm |
