SKU: 32B-1-BB-NO12-RENOLD
Renold Blue Box 32B-1-NO12 BS Simplex Single Cranked Cottered Link 2 inch Pitch
- Regular price
- CHF 128.00 ex VAT
- Sale price
- CHF 128.00
- Regular price
-
Not in stock
Quantity Price Breaks
2
CHF 113.92
5
CHF 107.52
10
CHF 106.24
29
CHF 104.96
49
CHF 103.68
75
CHF 102.40
100
CHF 96.00
200
CHF 94.72
250
CHF 93.44
500
CHF 92.16
1000
CHF 89.60
SKU:
32B-1-BB-NO12-RENOLD
Renold Blue Box 32B-1-NO12 BS Simplex Single Cranked Cottered Link 2 inch Pitch
- Regular price
- CHF 128.00 ex VAT
- Sale price
- CHF 128.00
- Regular price
-
Description

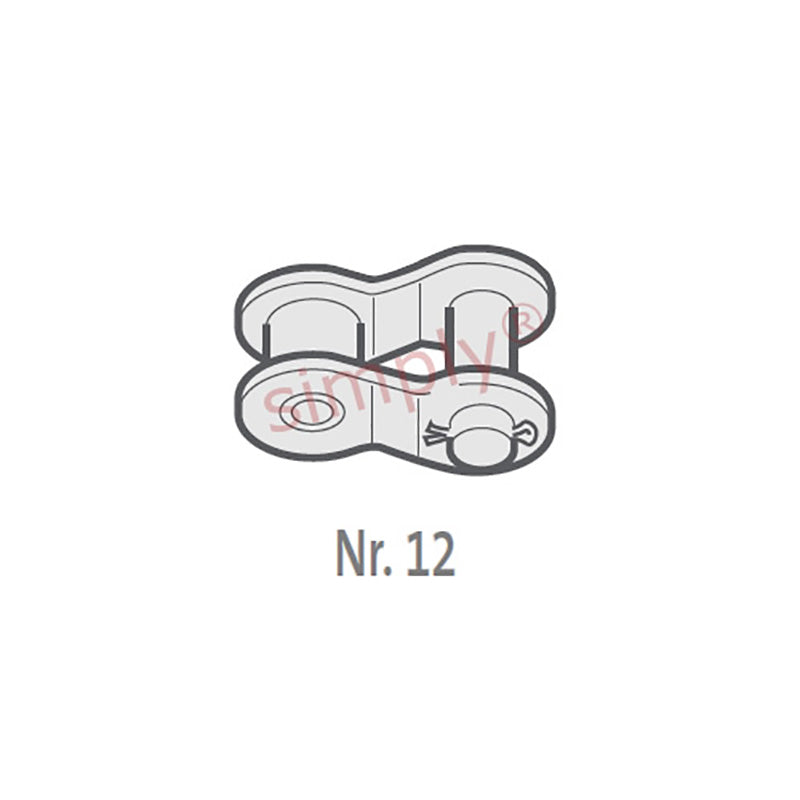

| Renold No. 12 European (BS) Simplex Connecting Link: A single link with cranked plates pressed onto a bush and roller assemble at the narrow end. A clearance fit connecting pin (No. 128) is fitted at the wide end and is secured by a split pin. |
Technical
| Pitch (A) | = | 2 inch |
| Pitch (A) | = | 50.8mm |
| Inside Width min (B) | = | 30.99mm |
| Roller Diameter max (C) | = | 29.21mm |
| Plate Height max (D) | = | 42.29mm |
| Plate Width Inner max (E) | = | 7.11mm |
| Plate Width Outer max (F) | = | 6.35mm |
| Pin Diameter max (G) | = | 17.81mm |
| Pin Length max (H1) | = | 63.4mm |
| Connecting Link Extension max (J) | = | 8mm |
| ISO606 Tensile Strength min | = | 250000 N |
| Weight | = | 0.16kg/m |
