SKU: 28B-3-BB-NO107-RENOLD
Renold Blue Box 28B-3-NO107 BS Triplex Chain Outer Link To Be Riveted 1-3/4 inch Pitch
- Regular price
- CHF 166.00 ex VAT
- Sale price
- CHF 166.00
- Regular price
-
Not in stock
Quantity Price Breaks
2
CHF 147.74
5
CHF 139.44
10
CHF 137.78
29
CHF 136.12
49
CHF 134.46
75
CHF 132.80
100
CHF 124.50
200
CHF 122.84
250
CHF 121.18
500
CHF 119.52
1000
CHF 116.20
SKU:
28B-3-BB-NO107-RENOLD
Renold Blue Box 28B-3-NO107 BS Triplex Chain Outer Link To Be Riveted 1-3/4 inch Pitch
- Regular price
- CHF 166.00 ex VAT
- Sale price
- CHF 166.00
- Regular price
-
Description

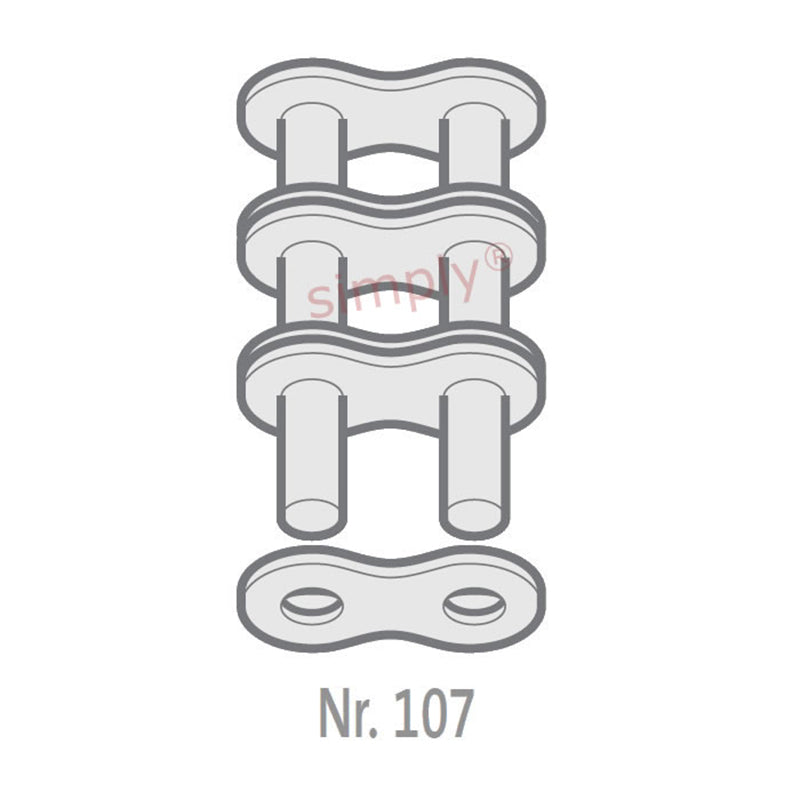

| Renold No. 107 European (BS) Triplex Connecting Link: For use with all sizes and types of chain where optimum security is desired. The link is supplied with bearing pins riveted into one outer plate. The other outer plate is an interference fit on the bearing pins, the ends of which should be riveted over after the plate is fitted. Press fit connecting links should only be used once; new links must be used to replace dismantled links. |
Technical
| Pitch (A) | = | 1.75 inch |
| Pitch (A) | = | 44.45mm |
| Inside Width min (B) | = | 30.99mm |
| Roller Diameter max (C) | = | 27.94mm |
| Plate Height max (D) | = | 37.08mm |
| Plate Width Inner max (E) | = | 7.62mm |
| Plate Width Outer max (F) | = | 6.35mm |
| Pin Diameter max (G) | = | 15.9mm |
| Pin Length max (H2) | = | 183.3mm |
| Connecting Link Extension max (J) | = | 6.8mm |
| Transverse Pitch nom (K) | = | 59.56mm |
| ISO606 Tensile Strength min | = | 530000 N |
| Weight | = | 0.27kg/m |
