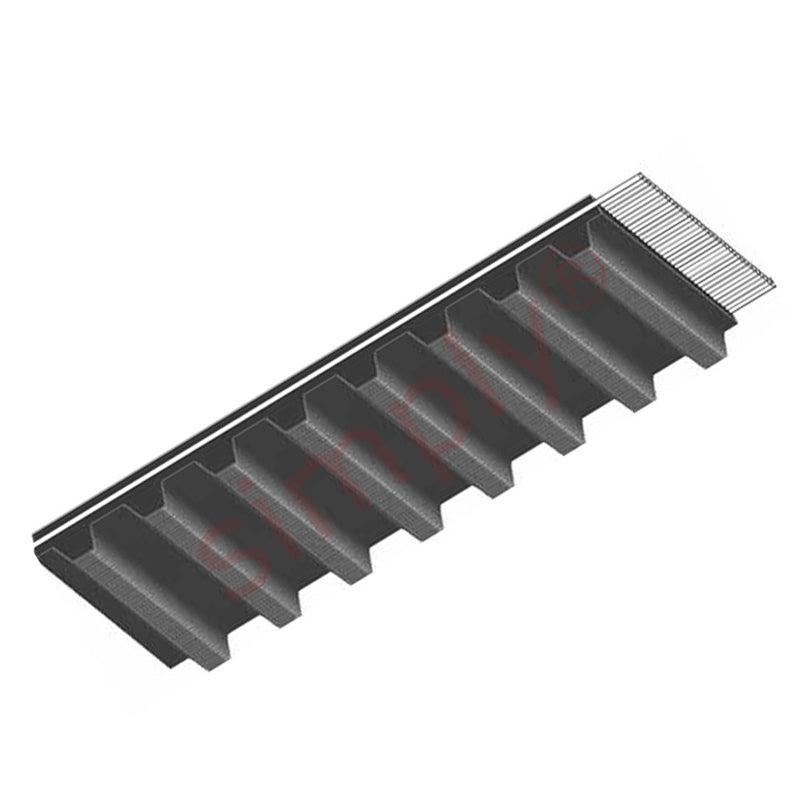

25T10/980DL ContiTech Synchroflex Toothed Belt 25mm Wide 10mm Pitch 98 Teeth

SKU: 25T10/980DL

25T10/980DL ContiTech Synchroflex Toothed Belt 25mm Wide 10mm Pitch 98 Teeth

CHF 73.00 ex VAT
CHF 73.00
ex VAT
Not in stock

Quantity Price Breaks

3 CHF 64.97
5 CHF 61.32
9 CHF 60.59
19 CHF 59.86
49 CHF 59.13
74 CHF 58.40
99 CHF 54.75
199 CHF 54.02
249 CHF 53.29
499 CHF 52.56
999 CHF 51.10
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
25T10/980DL ContiTech Synchroflex Toothed Belt 25mm Wide 10mm Pitch 98 Teeth
SKU: 25T10/980DL

25T10/980DL ContiTech Synchroflex Toothed Belt 25mm Wide 10mm Pitch 98 Teeth

CHF 73.00 ex VAT
CHF 73.00
ex VAT

Description

Synchronous Drive Belts: Power transmission belts have become a valuable element of synchronous transmission throughout the entire field of drive technology. They enable purpose-made solutions to be realized effectively and economically.
Thanks to their high flexibility synchronous drive belts enable low-cost design, even with difficult drive system requirements such as high transmission ratios, high belt speeds, small pulley diameters and back tensioning rollers.
Benefits: Synchronised drive, Outstanding resistance to fatigue and deformation, as well as a good resistance to environmental influences, temperature extremes and ageing, are all factors which give the user high service reliability and freedom from maintenance.

Technical

No Teeth = 98
Width = 25mm
Tooth Pitch t = 10mm
Belt Length = 980mm
Belt Thickness h< = sub>
s< = /sub>
= 7mm
Tooth Height h< = sub>
t< = /sub>
= 2.5mm
Flank Angle = 40 deg
Tension member loadings = 2000 Fadm(N)
Belt weight = 0.143kg/m
