SKU: 24B-1-SD-NO12-RENOLD
Renold SD 24B-1-NO12 BS Simplex Chain Single Cranked Cottered Link 1-1/2 inch Pitch
- Regular price
- CHF 30.00 ex VAT
- Sale price
- CHF 30.00
- Regular price
-
In stock
Quantity Price Breaks
2
CHF 26.70
5
CHF 25.20
10
CHF 24.90
29
CHF 24.60
49
CHF 24.30
75
CHF 24.00
100
CHF 22.50
200
CHF 22.20
250
CHF 21.90
500
CHF 21.60
1000
CHF 21.00
SKU:
24B-1-SD-NO12-RENOLD
Renold SD 24B-1-NO12 BS Simplex Chain Single Cranked Cottered Link 1-1/2 inch Pitch
- Regular price
- CHF 30.00 ex VAT
- Sale price
- CHF 30.00
- Regular price
-
Description

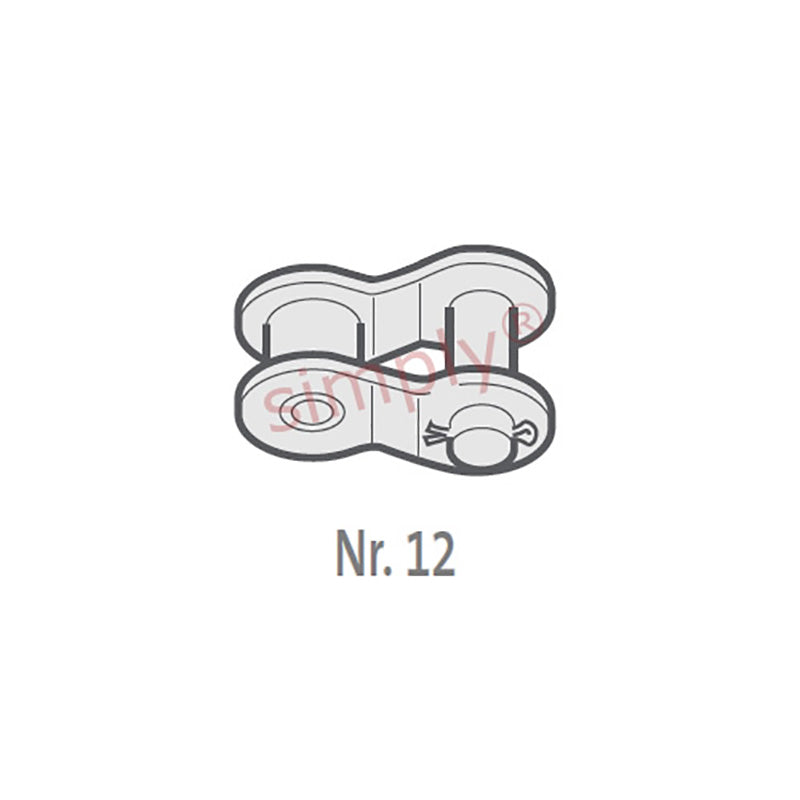

| Renold No. 12 European (BS) Simplex Connecting Link: A single link with cranked plates pressed onto a bush and roller assemble at the narrow end. A clearance fit connecting pin (No. 128) is fitted at the wide end and is secured by a split pin. |
Technical
| Pitch (A) | = | 1.5 inch |
| Pitch (A) | = | 38.1mm |
| Inside Width min (B) | = | 25.4mm |
| Roller Diameter max (C) | = | 25.4mm |
| Plate Height max (D) | = | 33.3mm |
| Plate Width Inner max (E) | = | 6mm |
| Plate Width Outer max (F) | = | 5.2mm |
| Pin Diameter max (G) | = | 14.63mm |
| Pin Length max (H1) | = | 53.3mm |
| Connecting Link Extension max (J) | = | 4.2mm |
| ISO606 Tensile Strength min | = | 160000 N |
| Weight | = | 0.001kg/m |
