SKU: 2314K-EU
2314K Budget Open Self Aligning Ball Bearing with Taper Bore 70x150x51mm
- Regular price
- CHF 32.00 ex VAT
- Sale price
- CHF 32.00
- Regular price
-
Not in stock
Quantity Price Breaks
10
CHF 28.48
19
CHF 26.88
29
CHF 26.56
39
CHF 26.24
49
CHF 25.92
74
CHF 25.60
99
CHF 24.00
199
CHF 23.68
249
CHF 23.36
499
CHF 23.04
999
CHF 22.40
SKU:
2314K-EU
2314K Budget Open Self Aligning Ball Bearing with Taper Bore 70x150x51mm
- Regular price
- CHF 32.00 ex VAT
- Sale price
- CHF 32.00
- Regular price
-
Description
|
Self Aligning Ball Bearings: This bearing series has two rows of balls running on the same spherical outer raceway, this makes the bearing self aligning, self centering and insensitive to angular misalignment. They are particularly suited to applications where considerable shaft deflections are anticipated. Self aligning ball bearings have the lowest rolling friction of all rolling bearings and are the coolest running bearing type even at high speeds |
Technical

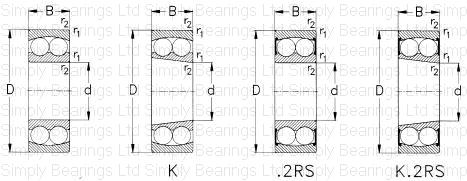

| --- | = | Dimensions |
| d | = | 70mm |
| D | = | 150mm |
| B | = | 51mm |
| D1 | = | 130mm |
| d1d2 | = | 91.4mm |
| r1r2 | = | 2.1mm |
| = | da min | |
| -mm | = | Da max |
| -mm | = | ra max |
| -mm | = | --- |
| Calculation Data | = | C |
| 405kN | = | Co |
| 43022 | = | Pu |
| 49kN | = | ref |
| 9500rpm | = | limit |
| 7000rpm | = | e |
| - | = | Y1 |
| - | = | Y2 |
| - | = | Y0 |
| - | = | --- |
| Weights | = | kg |
| 4.2 | = | N/A |
