SKU: 23122-E1-K-TVPB-C3+H3122-FAG
FAG 23122E1KTVPBC3 X-life Spherical Roller Bearing with Glass Fibre Reinforced Polyamide Cage with H3122 Adapter Sleeve 100x180x56mm
- Regular price
- CHF 442.00 ex VAT
- Sale price
- CHF 442.00
- Regular price
-
Not in stock
Quantity Price Breaks
3
CHF 393.38
4
CHF 371.28
9
CHF 366.86
19
CHF 362.44
29
CHF 358.02
39
CHF 353.60
49
CHF 331.50
59
CHF 327.08
249
CHF 322.66
499
CHF 318.24
999
CHF 309.40
SKU:
23122-E1-K-TVPB-C3+H3122-FAG
FAG 23122E1KTVPBC3 X-life Spherical Roller Bearing with Glass Fibre Reinforced Polyamide Cage with H3122 Adapter Sleeve 100x180x56mm
- Regular price
- CHF 442.00 ex VAT
- Sale price
- CHF 442.00
- Regular price
-
Description
|
Spherical Roller Bearing with Adapter Sleeve: These bearings have two rows of barrel shaped (spherical) rollers which run on a common spherical outer and inner raceway, they are inclined at an angle to the bearings axis. Their design offers many features such as self alignment, insensitivity to misalignment, tolerance to heavy radial and axial loads etc. They are manufactured with in both parallel and tapered bore variants. This bearing is supplied with an adapter sleeve. Benefits: High radial and axial loads, misalignment, taper and parallel bore options |

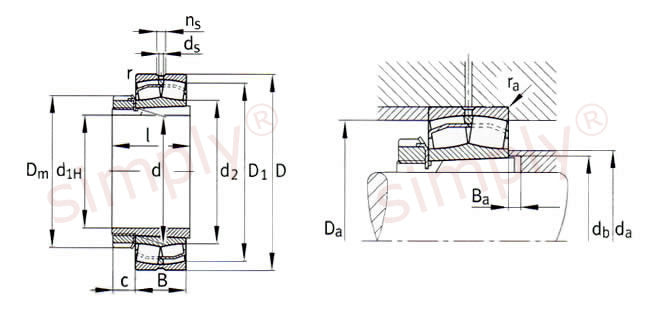

Technical
| d1H | = | 100mm |
| d | = | 110mm |
| D | = | 180mm |
| B | = | 56mm |
| r min | = | 2mm |
| D1 | = | 160mm |
| d2 | = | 124.6mm |
| ds | = | 4.8mm |
| ns | = | 9.5mm |
| Dm | = | 154mm |
| l | = | 81mm |
| c | = | 21mm |
| da max | = | 124mm |
| Da max | = | 169mm |
| db min | = | 117mm |
| Ba min | = | 7mm |
| ra max | = | 2mm |
| Dynamic load Cr | = | 530000 N |
| Static load C0r | = | 680000 N |
| e | = | 0.28 |
| Y1 | = | 2.39 |
| Y2 | = | 3.56 |
| Y0 | = | 7.34 |
| Fatigue load limit Cur | = | 61000 N |
| Limiting speed nG | = | 4000 rpm |
| Reference speed nB | = | 2550 rpm |
| Bearing weight | = | 4.95 kg |
| Adapter sleeve weight | = | 2.23 kg |
