224J12 Tapered Bore Polyvee Belt Pulley 224mm Pitch Diameter 12 Grooves

SKU: 224J12-TB

224J12 Tapered Bore Polyvee Belt Pulley 224mm Pitch Diameter 12 Grooves

CHF 220.00 ex VAT
CHF 220.00
ex VAT
Equivalent to: PYB224J12
Not in stock

Quantity Price Breaks

3 CHF 195.80
5 CHF 184.80
9 CHF 182.60
19 CHF 180.40
49 CHF 178.20
74 CHF 176.00
99 CHF 165.00
199 CHF 162.80
249 CHF 160.60
499 CHF 158.40
999 CHF 154.00
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
224J12 Tapered Bore Polyvee Belt Pulley 224mm Pitch Diameter 12 Grooves
SKU: 224J12-TB

224J12 Tapered Bore Polyvee Belt Pulley 224mm Pitch Diameter 12 Grooves

CHF 220.00 ex VAT
CHF 220.00
ex VAT

Description

J Section Polyvee Belt Pulleys: These pulleys are carefully manufactured from high-quality black phosphatized steel. We can supply these pulleys in a wide range of sizes, either pilot bored or taper bored.
Benefits: High-quality, precision profile, black phosphatized

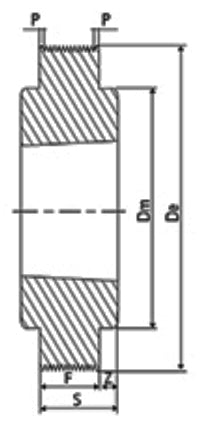

Technical

Number of Grooves = 12
De = 224mm
S = 45mm
Z = 6.25mm
Dm = 120mm
Bush = 2517
Weight = 0.01 kg
