SKU: 22317-E1-K-C3+H2317-FAG

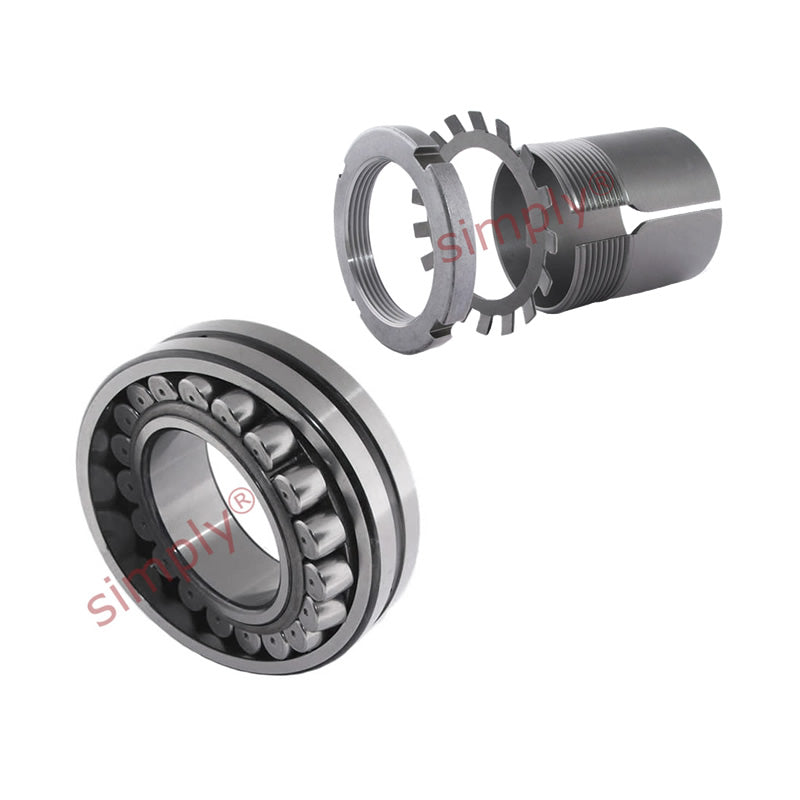

FAG 22317E1KC3 X-life Spherical Roller Bearing with H2317 Adapter Sleeve 75x180x60mm
- Regular price
- CHF 359.00 ex VAT
- Sale price
- CHF 359.00
- Regular price
-
Not in stock
No price breaks available for this product.
SKU:
22317-E1-K-C3+H2317-FAG
FAG 22317E1KC3 X-life Spherical Roller Bearing with H2317 Adapter Sleeve 75x180x60mm
- Regular price
- CHF 359.00 ex VAT
- Sale price
- CHF 359.00
- Regular price
-
Description
|
Spherical Roller Bearing with Adapter Sleeve: These bearings have two rows of barrel shaped (spherical) rollers which run on a common spherical outer and inner raceway, they are inclined at an angle to the bearings axis. Their design offers many features such as self alignment, insensitivity to misalignment, tolerance to heavy radial and axial loads etc. They are manufactured with in both parallel and tapered bore variants. This bearing is supplied with an adapter sleeve. Benefits: High radial and axial loads, misalignment, taper and parallel bore options |
Technical
| d1H | = | 75mm |
| d | = | 85mm |
| D | = | 180mm |
| B | = | 60mm |
| r min | = | 3mm |
| D1 | = | 154.2mm |
| d2 | = | 104.4mm |
| ds | = | 4.8mm |
| ns | = | 9.5mm |
| Dm | = | 110mm |
| l | = | 82mm |
| c | = | 18mm |
| da max | = | 104mm |
| Da max | = | 166mm |
| db min | = | 94mm |
| Ba min | = | 6mm |
| ra max | = | 2.5mm |
| Dynamic load Cr | = | 540000 N |
| Static load C0r | = | 560000 N |
| e | = | 0.33 |
| Y1 | = | 2.04 |
| Y2 | = | 3.04 |
| Y0 | = | 2 |
| Fatigue load limit Cur | = | 50000 N |
| Limiting speed nG | = | 4000 rpm |
| Reference speed nB | = | 3200 rpm |
| Bearing weight | = | 7.06 kg |
| Adapter sleeve weight | = | 1.44 kg |
